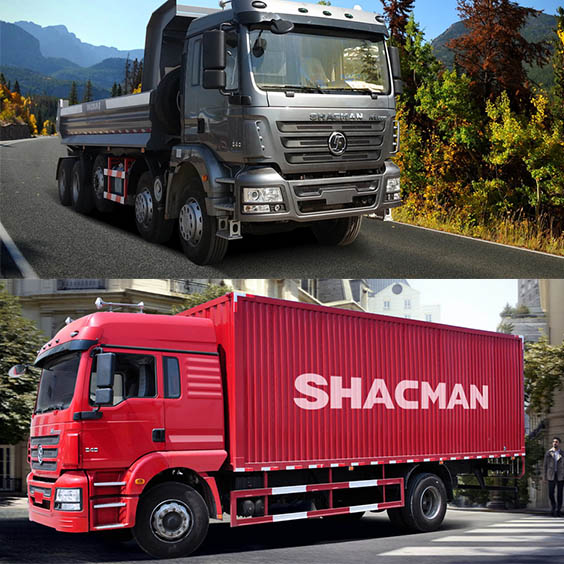

M3000 Tipper

The M3000 Tipper bring about a new standard in truck quality. With a proven design, the M3000 Tipper is one of the most balanced product. Lightweight, effiencent and innovative.

A Truck You Can Depend On

Special Features:

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

The M3000 Tipper uses brand new European TGS cabin technology with improved cabin tightness, sound proofing and insulation making your work day more enjoyable and safe.

There are also have F2000 Tipper and F3000 Tipper.

Product Notes:

M3000 tipper is also called tipper truck, is mainly used  for engineering projects, for transport dust, sand, rock ,etc, also used in mining and coal site.

1. You can choose different brand chassis: Dongfeng,Sinotruk, Shaanxi, Foton, styer, hongyan, howo, etc.

2. You can choose suitable loading capacity:from 1 ton to 40 ton

3. You can choose suitable driving type: 4x2, 4x4, 6x4, 8x2, 8x4, semi-trailer

4. Competitive price and good quality

MAIN SPECIFICATION
Shacman Tipper Dump Truck
Model:Shacman F3000 Dump Truck
Driving type: 6x4 4x2 8x4
Weight
Complete kerb mass (kg): 12160
GVW (kg): 32500
Dimensions
LxWxH (mm): 7550x2490x3450
Body size(mm): 5600x2300x1100,1300,1500
Front/rear overhang(chassis): 1525/1450
Wheel base (mm): 3175+1400
Track width (mm): 2036/1850



Product-Features

With a proven design, the M3000 series is one of the most balanced product. Lightweight, effiencent and innovative,  the M3000 bring about a new standard in truck quality.

A Truck You Can Depend On

With a proven design, the M3000 series is one of the most balanced product. Lightweight, effiencent and innovative,  the M3000 bring about a new standard in truck quality.

■  Lightweight European design, precision power matching
■  Optimized intake module decreasing intake resistance by 6%
■  Efficient real axles that increase transmission efficiency by 13%
■  Intercooler resistance reduced by 29%
■  engine power loss reduced by 8%
■  Efficient tires which reduces rolling resistance by 10%
■  Cooling module developed from adopting German Behr BISS simulation software increasing cooling capacity by 10%

Comfortable and Safe

The M3000 series uses brand new European TGS cabin technology with improved cabin tightness, sound proofing and insulation making your work day more enjoyable and safe.

■  European ECE-R29 collision test certified
■  Imported curved high strengh windshield
■  Sedan inspired interior design
■  Spacious interior with 8 new storage locations
■  Sleeping bed width increased to 750mm
■  Telescopic shaft gear shift mechanism

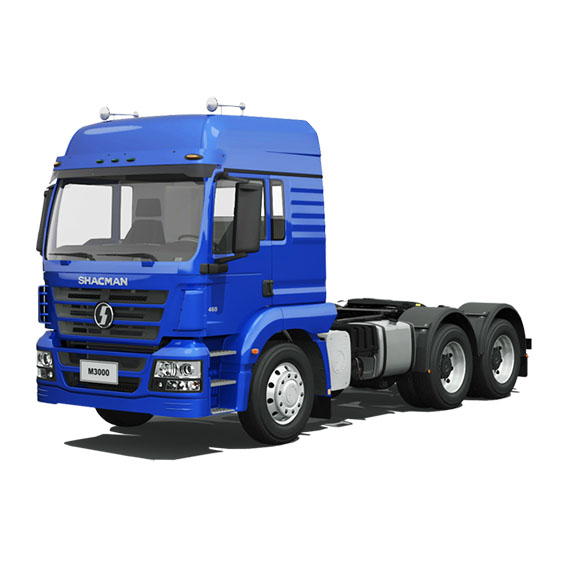

Specification

Trailer Truck Dump Truck Lorry
Drive type 4×2,  6×4 6×4、8×4、10×4 8×4、10×4
Cabin Lengthened high roof (G)
Lengthened mid roof (H)
Lengthened mid roof (H)
Flat roof (M)
Lengthened high roof (G)
Lengthened mid roof (H)
Engine Weichai power WP6, WP7, WP10, WP12
Cummins ISM series
Weichai power WP7, WP10, WP12 Weichai power WP6, WP7, WP10
Emission Level Euro II, III, IV, V Euro II, III, IV, V Euro II, III, IV, V
Transmission FAST F9, F10, F12 series Manual transmission 8F, 9F, 10F, Automatic transmission FAST F8, F9, F10, F12 series
Clutch ETONФ430 diaphragm imported
or Chinese manufactured
 ETONФ430 diaphragm imported
or Chinese manufactured
ETONФ430 diaphragm imported
or Chinese manufactured
Front Axle 7.5 ton MAN (drum)
6×4 vehicles can select 5.5 ton MAN (drum)
7.5 ton MAN (drum)
5.5 ton MAN (drum)
5.5 ton MAN (drum)
7.5 ton MAN
Rear Axle 13 ton MAN double reduction
with optional 13 ton MAN single reduction
or 13 ton STR double reduction
16 ton MAN double stage casting
13 ton MAN double stage
13 ton MAN single stage
11.5 ton MAN single stage
Suspension Multi leaf springs with optional few leaf spring configuration for 6×4 vehicles Multi leaf springs, 4 main piece U-bolts Multi leaf springs
Frame(in mm) 850×270(8+5)
850×270(8+4)
850×300(8+7)
850×300(8+5)
850×300(8+5)
Fuel Tank 300 / 400 / 600 liter aluminum 300 / 400 liter aluminum 400 / 600 liter aluminum
380 liter steel
Tires 12.00R20, 11.00R20
12.00R22.5, 11.00R22.5
11.00R20、12.00R20 11.00R20、12.00R20
The fifth wheel Regular 90 saddle
enhanced 90 saddle
lightweight 90 saddle
Model M3000 skip loader truck
Transport type  Municipal transport
Logistics type Skip bucket
Drive 6×4
Max weight (GVW) ≤35T
Approach Angle/Departure Angle 18°/12°
Economic speed/Max speed 50~65/90 km/h
Vehicle model SX5255ZLJMK434R
Wheelbase 4375+1400 mm
Lights • Head lamps
• Front and rear turn signal lamps
• Front and rear clearance and parking lamps
• Registration number plate lamp
• Reverse turning lamps
Electric 24V
Powertrain Engine WP6.240E32
Emission standard Euro II
Displacement 6.75L
Rated Output 176kW/2500rpm
Max. torque 750Nm
Air filter  Fleetguard
Transmission 8JS118 (8 forward speeds, and 1 reverse speed)
Transmission operation  Telescopic shaft operation
Clutch  φ395 Single plate
Chassis Frame 850×300(8+5) mm
Steering machine Recirculating ball screw type (RHD)
Front axle MAN 7.5T (forged steel I cross-section beam)
Rear axle  13T MAN double reduction 4.769 (tandem set)
Brake Pneumatic type, with brake chambers on axles, with WEVB engine brake
Tire 12.00R20
Suspension Rigid axle type, front semi-elliptic leaf springs shackle type, rear semi-elliptic two stage leaf springs
Shock Absorber Telescope type shock absorber on front axle
Battery 165Ah
Fuel Diesel
Capacity of the fuel tank 400L(Aluminum)
Bumper Glassfiber
Cab Equipments Hydraulic main seat
Four point hydraulic suspension
Electrically Controlled Air Conditioning
 Electric controlled window
Radio  with MP3  player
Model M3000 tipper
Transport type Sand, gravel transport
Logistics type  Sand, gravel
Drive 4×2
Max weight (GVW) ≤25T
Approach Angle/Departure Angle 28°/23°
Economic speed/Max speed 45~60/80km/h
Vehicle model SX3185MK381R
Wheelbase 3800 mm
Lights • Head lamps
• Front and rear turn signal lamps
• Front and rear clearance and parking lamps
• Reverse turning lamps
Electric 24V
Powertrain Engine WP6.240E32
Emission standard Euro II
Displacement 6.75L
Rated Output 176kW/2500rpm
Max. torque 750Nm
Air filter  Fleetguard
Transmission 8JS118 (8 forward speeds, and 1 reverse speed)
Transmission operation  Telescopic shaft operation
Clutch φ395 Single plate
Chassis Frame 850×300(8+7)mm
Steering machine Recirculating ball screw type (RHD)
Front axle MAN 7.5T (forged steel I cross section beam)
Rear axle  13T MAN double reduction 5.262 (pressed banjo type housing)
Brake Pneumatic type, with brake chambers on axles
Tire 11.00R20 Radial tyre
Suspension Rigid axle type, front semi-elliptic leaf springs shackle type, rear semi-elliptic two stage leaf springs
Shock absorber Telescope type shock absorber on front axle
Battery 165Ah
Fuel Diesel
Capacity of the fuel tank 400L(Aluminium)
Bumper  Steel
Cab Equipments Hydraulic main seat
Four point hydraulic cab suspension
Electrically Controlled Air Conditioning
 Electric-controlled window
Rear lights protective grille
Radio  with MP3  player
•One high back seat for the driver
•One seat to accommodate one passenger
•Ceiling light for cabin interior
•Ceiling and walls noise insulated
•Drivers side fitted with sun visor
Main specifications of SHACMAN M3000 6X4 Concrete Mixer Truck
Reference picture



Model SX5255GJBMR384
Driving Type 6×4
Wheelbase (mm) 3775+1400
Curb weight (kg) 12470
Gross weight (kg) 25000
Overall Dimension (mm) L 9397
W 2500
H 3780
Max. Speed (km/h) 85
Engine model WEICHAI WP10.340E32
Rate power 340HP
Emission Standard EURO II
Engine displacement(L) 9.726
Quantity of axle 3
Gearbox US Eaton Fuller technology, FAST,9JS135T-B, 9 forward gears, 1 reverse gear, with synchronizer
Tire 12.00R20
Fuel tank capacity(L) 400L, Aluminum
Cab German MAN technology, M3000 M Cabin, one sleeper,

air seat for driver, electric window glass lifter, with A/C, hydraulic cabin suspension

Front axle German MAN technology, HANDE,  MAN 7.5T front axle
Rear axle German MAN technology, HANDE, MAN 16T rear axle, Hub Reduction, ratio 5.262
Fuel kind DIESEL
Other Equipments electric cab tilting, Aluminum reservoir, 165Ah free-maintenance battery, Fleetguard air filter
Body 10 CBM mixer drum, CIMC LINYU
QUALITY 100PCT BRAND NEW. PRODUCED IN 2018
CIF,SHV port price(USD) 30,000-35,000
