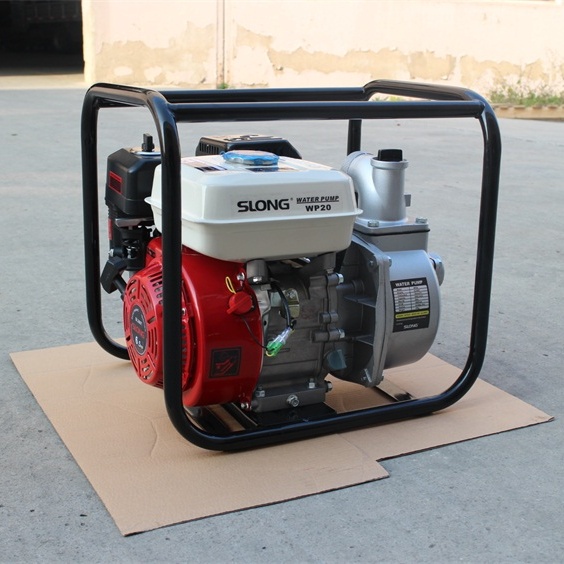

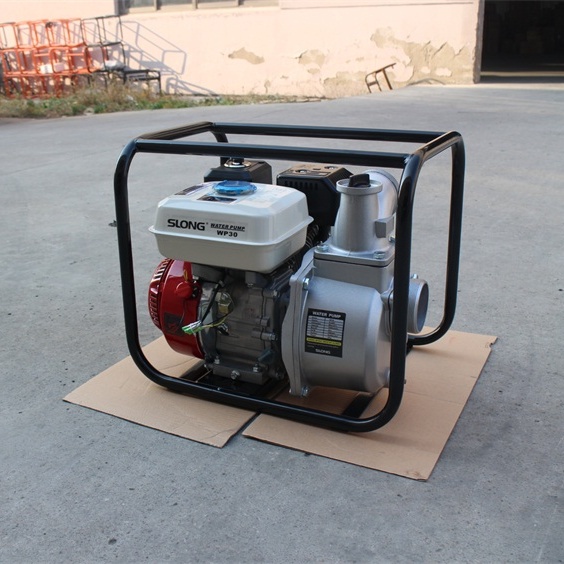

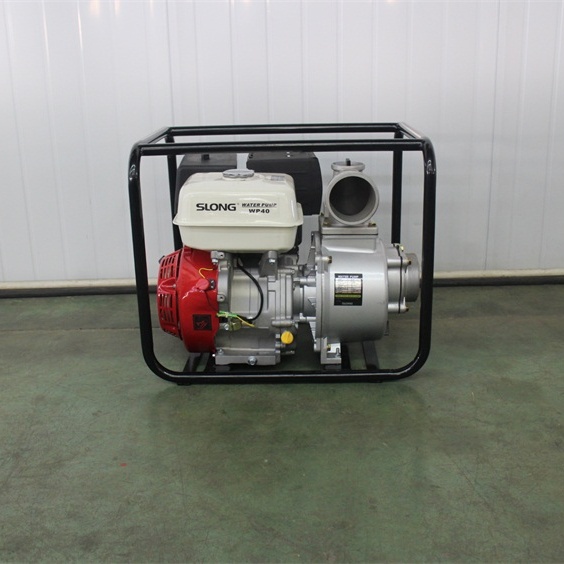

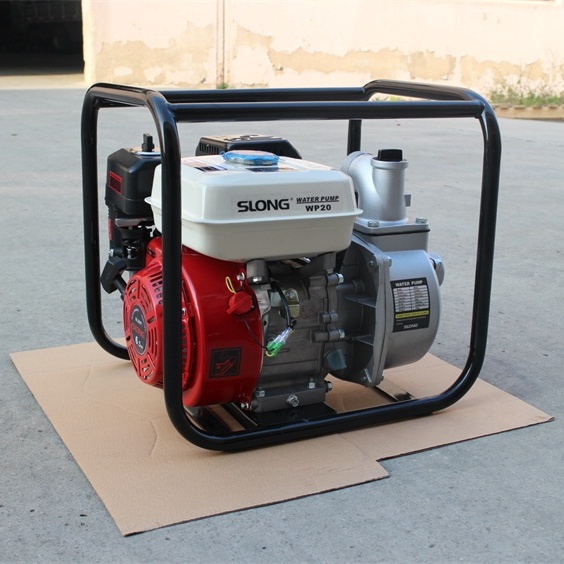

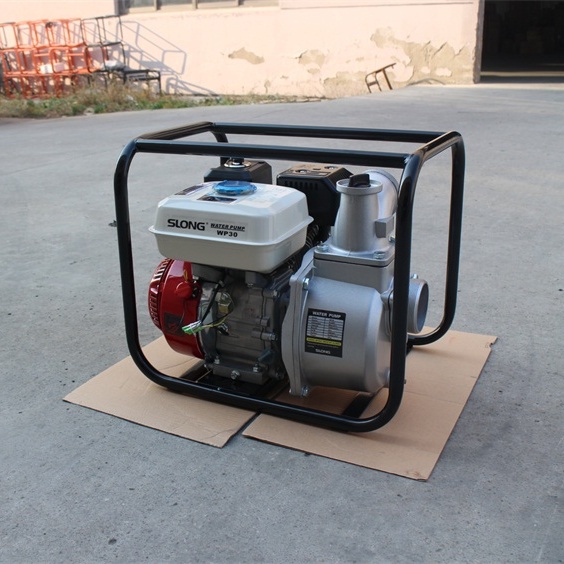

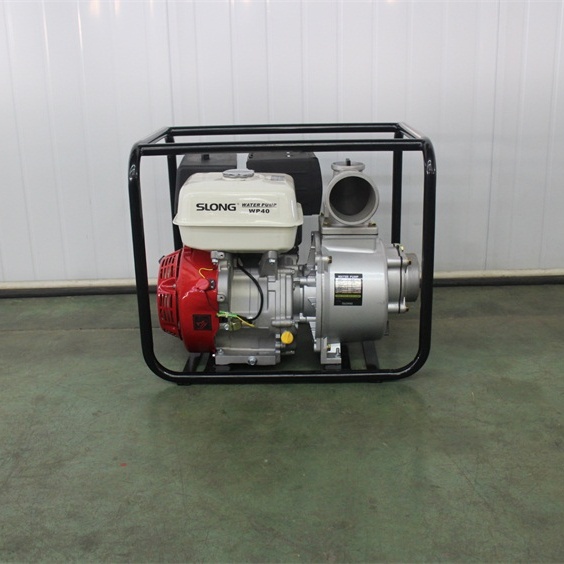

WP Gasoline Water Pump

  • Easy starting SLONG commercial engine:The durable SLONG series commercial grade engine is easy starting and provides enough power for the toughest conditions.
  • 5 vane high efficiency impeller:5 vane impeller offers improved performance and high efficiency.
  • Durable silicon carbide mechanical seal:Abrasion-resistant silicone-carbide seals for extended wear.

Product-Features

1.Easy starting SLONG commercial engine

The durable SLONG series commercial grade engine is easy starting and provides enough power for the toughest conditions.

2.5 vane high efficiency impeller

5 vane impeller offers improved performance and high efficiency.

3.Durable silicon carbide mechanical seal

Abrasion-resistant silicone-carbide seals for extended wear.

4.Protected by Oil Alert

Protects the pump by shutting the engine off when low oil is detected.

5.Certification Compliant

CE / Euro V

Specification

Model WG20 WG30
Product Description Gasoline Water Pump
Pump
Pump type Centrifugal Pump
Flow(m³/H) 35 55
Suction Port Diameter(mm/inch) 50/2 80/3
Discharge Port Diameter(mm/inch) 50/2 80/3
Total Head Lift(m) 30 30
Suction Head Lift(m) 7 7
Engine
Model GB200 GB200
Engine Type OHV, Air Cooling, 4 Stroke,
Displacement (cc) 196 196
Max Power Output(W) 4500 4500
Starting System Recoil Recoil
Engine Oil Capacity (ml) 600 600
Recommended Oil SAE  10W-30 SAE  10W-30
Fuel Tank Size (L ) 2.6 2.6
Accessories Spark plug Socket, Clamp*3, Filter, Pipe joint*2, Joint*2, Gasket*2 Spark plug Socket, Clamp*3, Filter, Pipe joint*2, Joint*2, Gasket*2
Packing Details
Outside Packing Dimensions (mm)   (L x W x H) 515×415×415 530×415×445
Net Wieght (kg) 24 26
20’GP Container Qty 20FT 305 305
40’GP Container Qty 40GP 625 615
40’HQ Container Qty 40HQ 750 615
Certification CE,EC,EPA,CARB CE,EC,EPA,CARB
