1.New Generation IGBT Inverter Technology
2.Built in Hot Start,anti-sticking and adjustment Arc force
3.High Duty Cycle and welding capacity
4.Ideal for welding of carbon steels, low-alloy steels and stainless steels
5.Easy-to-use and user-friendly control panel
6.Stepless welding current adjustment knob
7.Digital ampermeter
8.Power Indicator light
9.Equipped with thermal protection and it’s indicator light.
10. Equipped with voltage protection this improves the reliability.
11.Easy welding cable connections with European type quick connectors.
12. Fan cooling system
13.Lightweight, Small and Patentde Compact Design
| NO | Model | Power supply (V/HZ) | Input Current (A) | Output Current (A) | OCV (V) | Rated Output (% at A) 40 | Electrode /wire dia (mm) | Accessories | Benefits and Remarks |
| MMA | |||||||||
| 1 | EXTREME 140 III | 1ph-230V 50/60Hz | 11.2A | 20-140A | 68V | 20% at 140A at 40 degree | 1.6-3.2mm | 1.5m CCAWelding cable with electrode holder; 1.5m CCA Earth cable with earth clamp (Cable16mm2, 10-25 dinse connector), | 1 PCB board inside,with hot start, arc force( built in),anti-sticking, can weld E6013, E7018 |
| 2 | EXTREME 160 III | 1ph-230V 50/60Hz | 13.4A | 20-160A | 68V | 20% at 160A at 40 degree | 1.6-4.0mm | 1.5m CCAWelding cable with electrode holder; 1.5m CCA Earth cable with earth clamp (Cable16mm2, 10-25 dinse connector), | 1 PCB board inside,with hot start, arc force( built in),anti-sticking, can weld E6013, E7018 |
| 3 | ESTICK 200III | 1ph-230V 50/60Hz | 23A | 20-200A | 65V | 30% at 200A at 40 degree | 1.6-5.0 | 2m CCA Welding cable with 200A electrode holder; 2m CCA Earth cable with 200Aearth clamp (Cable 25mm2, 35-70 dinse connector) | Portable inverter stick welder; thermal protection; Stepless current setting; Anti-sticking; Arc force; with digital displayer |

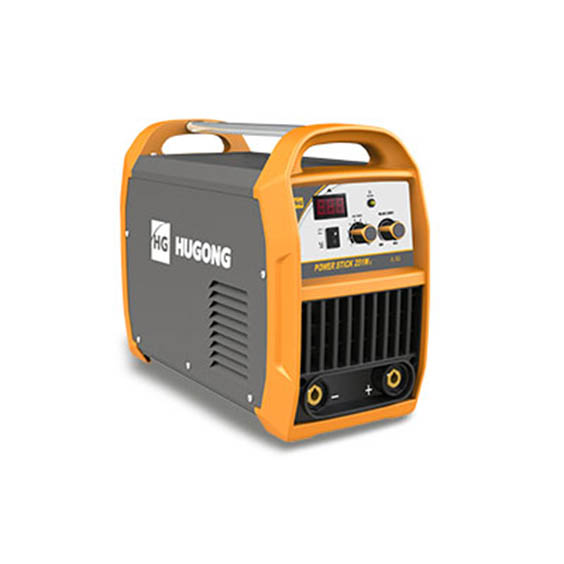

| 4 | POWER STICK 200W III | 1ph-230V 50/60Hz | 16.5A | 30-200A | 80V | 20% at 200A at 40 degree | 1.6-5.0MM | 2m Welding cable with electrode holder; 2m Earth cable with earth clamp (Cable 16mm2, 35-70 dinse connector), | 4 PCB boards in side; hot start, Anti-sticking; Arc force; with lift tig; digital displayer; Easy repairing; can weld cellulosic; can weld nunder low voltage 180V |
| 5 | POWER STICK 251W III | 1ph-230V 50/60Hz | 26.8 | 30-250A | 80V | 30% at 250A at 40 degree | 1.6-5.0 | 2m Welding cable with 300A electrode holder; 2m Earth cable with 300A earth clamp,(Cable 25mm2, 35-70 dinse connector) | 4 PCB boards in side; hot start, Anti-sticking; Arc force; with lift tig; digital displayer; Easy repairing; can weld cellulosic; can weld nunder low voltage 180V |
| 6 | POWER STICK 252 III | 1ph-230V/400V 50/60HZ | 36A at 230V; 20.9A at 400V |
25-200A at 230V 30-250A at 400V |
77V at 230V 62V at 400V |
230V: 60% at 200A; 400V: 40% at 250A |
2.5-5.0mm | 2m Welding cable with electrode holder; 2m Earth cable with earth clamp (Cable 25mm2, 35-70 dinse connector), | Dual voltage IGBT INVERTER HIGH DUTY CYCLE |
| 7 | INVERDELTA 400 III | 3ph-400V 50/60HZ | 14.5A | 15-400A | 82V | 25% at 400A at 40 degree | 1.6-5.0MM | 5m Welding cable with electrode holder; 3m Earth cable with earth clamp,(Cable 40mm2, 35-70 dinse connector), | IGBT INVERTER; Digital displayer; Stepless current setting; Hot start and arc force |
| 8 | INVERDELTA 500W III | 3ph-400V 50/60HZ | 31A | 25-500A | 80V | 60% at 500A | 1.6-8.0MM | 5m Welding cable with electrode holder; 3m Earth cable with earth clamp,(Cable50mm2, 70-95 dinse connector), | Digital displayer; Stepless current setting; Current preset; Hot start; Arc force adjustable; lift arc tig; Acceptable +/- 20% voltage |
| MIG | |||||||||
| 9 | EXTREMIG 160W III | 1ph-230V 50/60Hz | 28.5 | MIG 30-160MMA 30-130 |
69 | 40degC: 20% at 160 |
MIG: 0.6-0.9MMA: 1.6-3.2 |
3m HG brand MIG 15 Torch；3m*16mm2 earth cable with earth clamp; 4m gas hose with hoop; 0.6/0.9/1.0 tip each one；0.6/0.8V Stye roller 1pcs,10-16 hoop 2pcs |
IGBT inverter MIG,Portable DC gas/no gas MIG/MMA welder Thermal protection; Stepless adjustment for wire feeding speed and voltage; Available for 1kg and 5kg spool; |
| 10 | EXTREMIG 200W III | 1ph-230V, 50/60Hz | 36 | 30～200A | 69 | 40degC: 30% at 200 |
MIG wire 0.6-1.2, flux core wire 0.8-0.9 | 3m HG brand MIG 15 Torch；3m*16mm2 earth cable with earth clamp; 4m gas hose with hoop; 0.6/0.9/1.0 tip each one；0.6/0.8V Stye roller 1pcs,10-16 hoop 2pcs |
IGBT inverter MIG,Portable DC gas/no gas MIG/MMA welder Thermal protection; Stepless adjustment for wire feeding speed and voltage; Available for 1kg and 5kg spool; |
