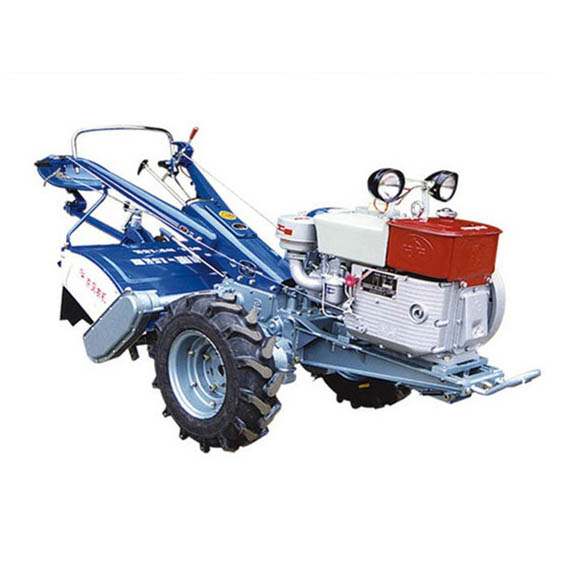

Walking Tractor

Walking Tractor is of dual-function type that can be used as a means of traction as well as drive. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for ploughing, rototilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc.

Product-Features

Walking Tractor is of dual-function type that can be used as a means of traction as well as drive. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for ploughing, rototilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc.

Specification

Model Unit DF-15L
Structure weight With Rotary Cultivator kg 465
Overall dimensions(L×W×H) mm 2680*960*1290
Number of blades PCS 18
Rototilling width mm 600
Traveling speed Forward Km/h 1.5,2.7, 4.4,5.7,10.2,16.2
Reverse 1.1, 4.1
Tire size 6.00-12
Min. ground clearance mm 185
Min. turning radius    m 0.9(without Rotary Cultivator)
Model of engine S1100A2N/ZS1100N
Rated output   kW 10.2
Specific fuel consumption   g/kW.h 253.8
Major Supporting Agriculture  Implements  Anti-skid Wheel, Disc Plough, Irrigator, Swather, Drill Planter,Tow Truck, Trailer
