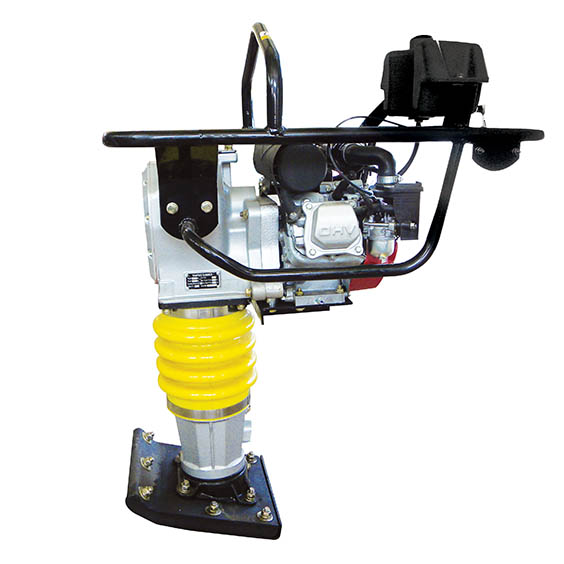

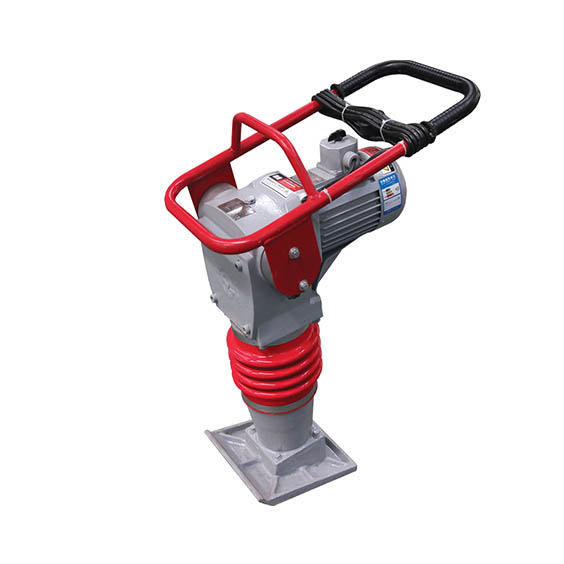

Vibratory Rammer is a kind of compaction mechanism. It has the characteristics of slight volume, light weight, well welt capability, turnaround in-situ, agile operation and high ramming efficiency.
This tamper is suitable for the pureness earth, the crushed stone, the concrete cement and each kind of grittiness soil. It is widely used in the road, the railroad, and the municipal administration construction, for the ramming of the roadbed, the side slope, pipeline paved, backfill earth, as well as foundation construction work such as path, bridge, reservoir, house and so on. It is also competent in the work which other large-sized and medium-sized tampers are unable to complete.
| Model | HCD70 | HCD90 | HCR80 |
| Power | 2.2KW electric motor/380v/50HZ/3Phase | 3KW electric motor/380v/50HZ/3Phase | Honda GX160 Gasoline Enging(5.5HP,4cycle) |
| Ramming force | 8KN | 10KN | 10KN |
| Jumping Height | 40-52mm | 40-52mm | 40-65mm |
| Max Compaction Frequency | 420-520T/m | 420-520T/m | 450-650T/m |
| Advancing Speed | 10m/min | 10m/min | 10-13m/min |
| N.W | 67kg | 76kg | 75kg |
| G.W | 72kg | 83kg | 83kg |
| Packing Size(mm) | 610×520×970 | 610×520×970 | 610×520×970 |
| Packing Data | Carton | Carton | Carton |
