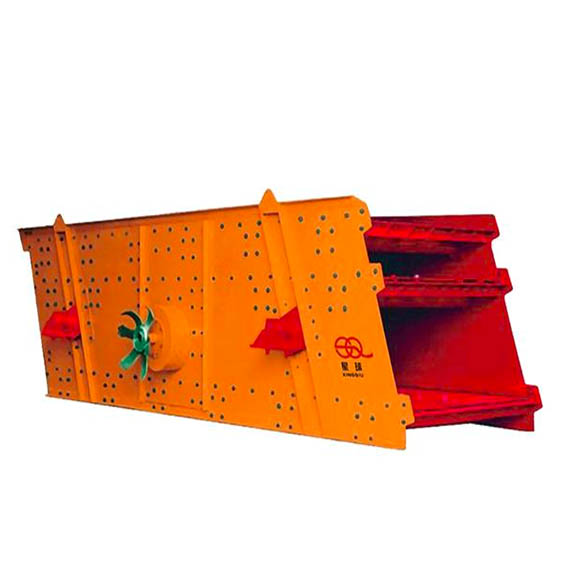

Vibrating Screen

Vibrating screen is widely used in mining, coal, electric power, building materials, fireproof materials and other industries for the classification of large blocks of materials and large, medium and small particles. The utility model has the advantages of high screening capacity, light weight, low energy consumption, simple structure and easy screen replacement.

Product-Features

Vibrating screen is widely used in mining, coal, electric power, building materials, fireproof materials and other industries for the classification of large blocks of materials and large, medium and small particles. The utility model has the advantages of high screening capacity, light weight, low energy consumption, simple structure and easy screen replacement.

Specification

Model 2YK1230 3YZ1230 3YK1245 2YZ-1230 4YK1245
Power(kw) 7.5 7.5 11 7.5 15
Layers 2 3 3 2 4
Specification(mm) 1200×3000 1200×3000 1200×4500 1200×3000 1200×3500
Max.Feed size(mm) 200 200 200 200 200
Sieve obliquity(°) 20 20 20 20 20
Capacity(t/h) 13-130 13-130 35-200 13-130 35-200
Dimension(mm) 3122×2050×2247 3360×2230×2770 5150×2680×3750 3122×2050×2247 5350×2680×4050
Weight(t) 2.7 3.05 4.46 2.7 4.85
