Chinese highly cost-efficient 3 cylinder diesel engines with high fuel efficiency, low maintenance cost, standard preheater and excellent cold start;
Center console with simple structure, high cost efficiency and easy maintenance; side console for driving and riding comfort;
8F+2R gearbox with easy operation and convenient maintenance; optional 8F+8R/16F+4R gears for multi-function demand;
Optional single/double-acting clutches for different needs and operation; special ceramic material for friction plates with high reliability as well as low use and maintenance cost.

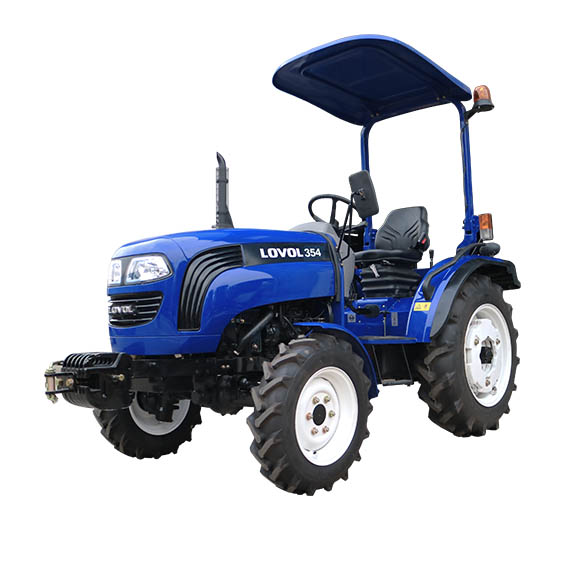

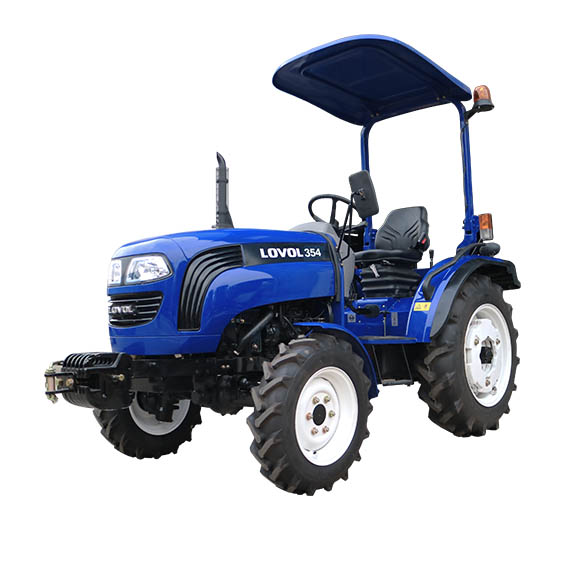

Powered by 3-cylinder direct injection diesel engine, TE Series Tractors range in power from 20HP to 30HP. 4-cylinder engine is for option, which can provide power up to 35 HP and meet the Emission Standard of EUROIIIA and EPA Tire4.
TE Series can provide you a maximum ground clearance of 338mm and row space of 420mm. The reliable pin-type differential lock enables the TE Series with best passing performance.
New front axle is used on the four-wheel-drive model, which can provide you reliable steering performance in harsh and paddy environments through dual-action steering cylinder and great waterproofness. Meanwhile, it has a minimum turning radius of 3.3m to help you operate easily in small spaces.
| Specifications | Units | TE254 | TE354 | TE504 | |
| Engine | KM385 | 4L22 | QC495 | ||
| Rated Engine Power ISO TR14396-ECE R120 |
hp/kW | 25/18. 4 | 35/25.7 | 50/36.7 | |
| Type | 3-cylinder, diesel | 4-cylinder, diesel | 4-cylinder, diesel | ||
| Rated Engine Speed | rpm | 2350 | 2350 | 2400 | |
| Fuel Tank Capacity | ltr | 30 | 36 | ||
| Dry Dual Clutch (Ceramic disk) | in. | 8 | 9 | 10 | |
| 8F+8R Collar Shift\8F+8R Synchro Shift | ○ | ○ | 8+8 | ||
| 8F+2R Collar Shift | ● | ● | – | ||
| Speed Range | km/h | 8F+8R: Forward(1.71-25.76)/ Reverse(1.51-24) | 1.98-30.01/1.8-27.95 | ||
| Type | Dry disc, Mechanical | Dry disc | |||
| Parking Brake | Mechanical, Independent of main brakes, Hand lever operated | Mechanical, Independent of main brakes, Hand lever | |||
| Air Trailer Brake | ○ | ○ | ○ | ||
| Type | Position or Floating Control | Position or Floating | |||
| Hydraulic Flow | l/min | 16 | 19 | 24 | |
| Lift Capacity at Lift Point | kg | 1750 | 1750 | 12.5 | |
| Lift Capacity at 610mm behind Hitch Point | kg | 580 | 670 | 827 | |
| ROPS | ● | ● | ○ | ||
| Full-view Cab | ○ | ○ | – | ||
| Front Tires | Standard | 6.0-16 | 6.5-16 | 6.0-16 | |
| Optional | 6.5-16 | 7.5-16 | 6.5-16 | ||
| Rear Tires | Standard | 9.5-24 | 11.2-24 | 11.2-24 | |
| Optional | 11.2-24 | 12.4-24 | |||
| ROPS Weights(kg)* | 1100 | 1280 | 1590 | ||
| Cab Weights(kg)* | 1280 | 1480 | – | ||
