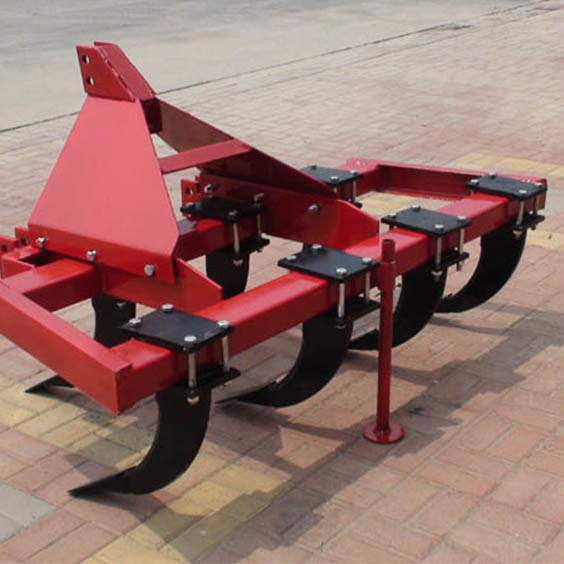

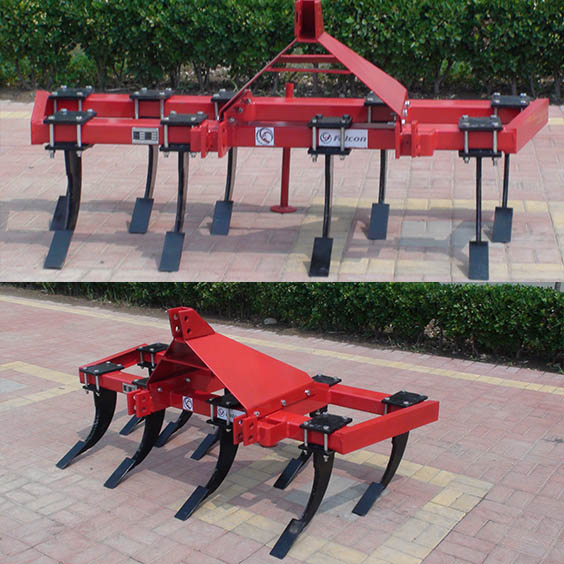

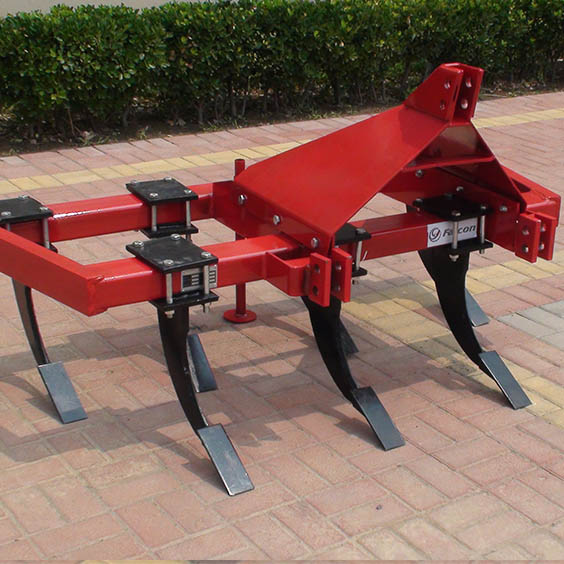

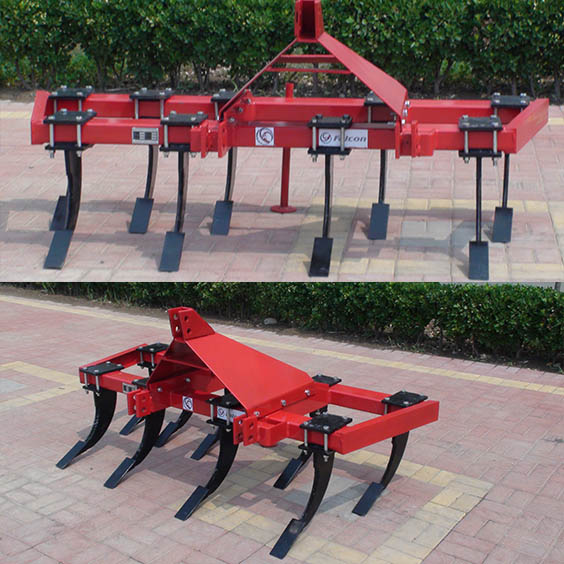

Subsoiler

Subsoiler as tillage as an important new technology at home and abroad more and more attention, the government is making great efforts to promote. I developed 1S-300 subsoiler, reasonable structure, reliable performance, traction resistance. Rack with frame, easy to adjust working width; shovel column is high, and staggered around, reducing the straw obstruct block, through the good, the working parts of the buffer spring and shear bolt double protection, is subsoiler meet a good model for China's national conditions.

Product-Features

Subsoiler as tillage as an important new technology at home and abroad more and more attention, the government is making great efforts to promote. I developed 1S-300 subsoiler, reasonable structure, reliable performance, traction resistance. Rack with frame, easy to adjust working width; shovel column is high, and staggered around, reducing the straw obstruct block, through the good, the working parts of the buffer spring and shear bolt double protection, is subsoiler meet a good model for China’s national conditions.

Specification

     Model Unit TS3S-1.0 TS3S-1.4 TS3S-1.8 TS3S-2.1 TS3S-2.6
 Working width mm 1000 1400 1800 2100 2600
No. of legs 5 7 9 11 13
Working depth mm 100-240
Total weight kg 240 280 320 370 450





Matched power hp 25 40 50~60 70~80 80~100
