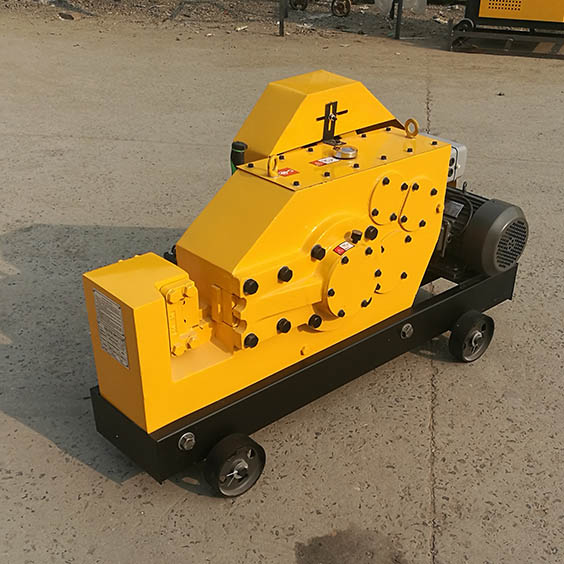

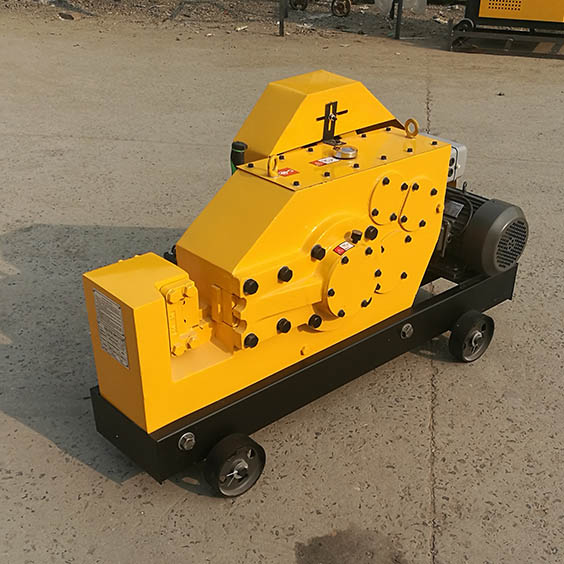

Steel Cutter

Steel Cutter can be applied to the cutting of ordinary carbon steel and hot rolled round steel and screw steel in various reinforced concrete of the construction project so as to reduce the amount of manpower for your construction.

Product-Features

It can be applied to the cutting of ordinary carbon steel and hot rolled round steel and screw steel in various reinforced concrete of the construction project so as to reduce the amount of manpower for your construction.

Specification

Model GQ40 GQ50
Electric motor 3KW/3-380V/50HZ 4KW/3-380V/50HZ
Max Cutting diameter(normal round bar) 6-40mm 6-45mm
Max Cutting diameter(II deformed bar) 6-32mm 6-36mm
Cutting Frequency 32times/min 28times/min
Control way manual manual
N.W 330kg 510kg
G.W 355kg 530kg
Packing Size(mm) 1350×600×900mm 1500×600×1030mm
