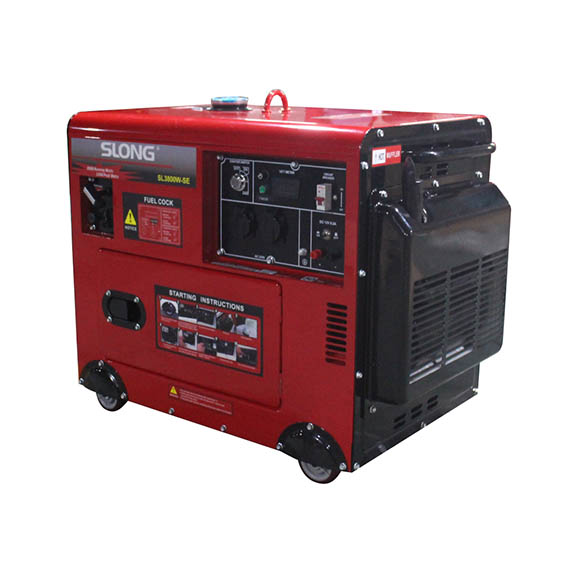

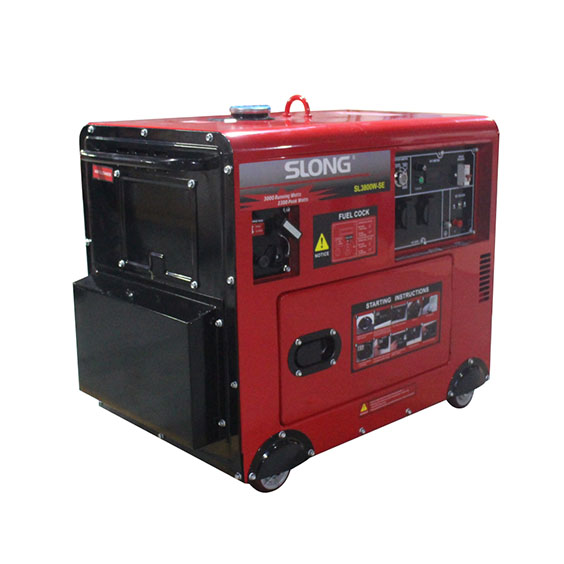

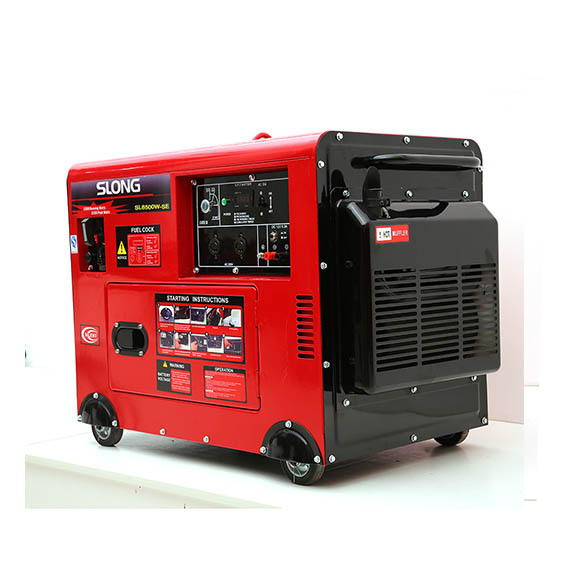

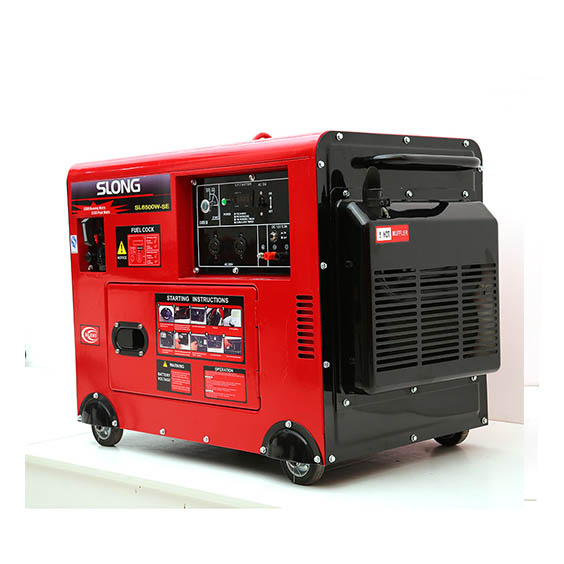

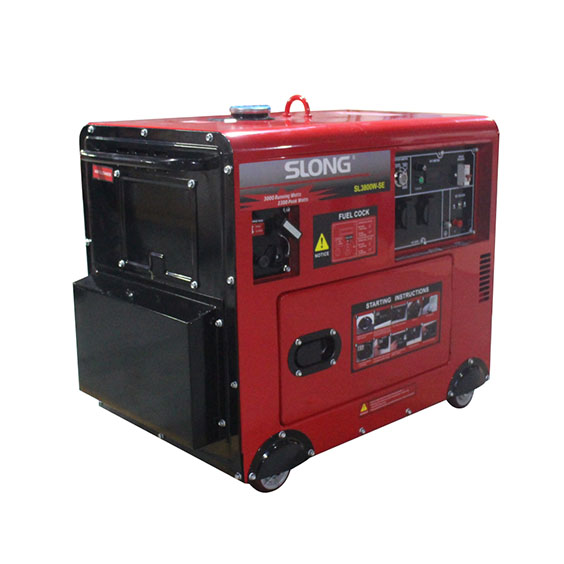

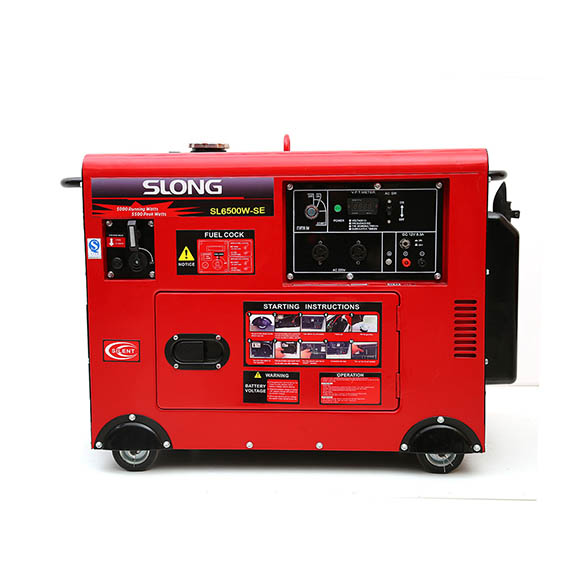

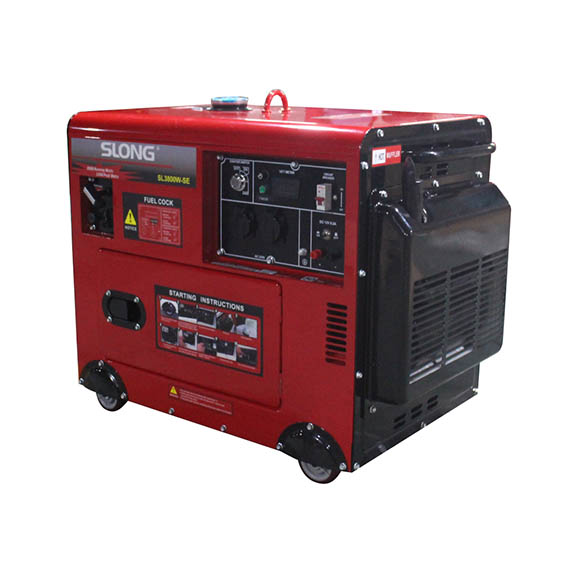

SL series Gasoline Generator

  • With SLONG Strong Commercial Grade Engine
  • Unique Inductive Alternator Technology
  • Full protection
  • Certification Compliant



Product-Features

1.With SLONG Strong Commercial Grade Engine

All generators are powered by SLONG commercial grade engines

Low vibration, easy start, low fuel consumption

2.Double-layer muffler structure make the noise lower.

Unique Inductive Alternator Technology

Digital AVR, high performance efficiency, stable power output, quickly start different equipment.

3.Full protection

Strong frame makes overall protection, easy move and storage

Low oil sensor protects the generator by shutting the engine off

Circuit breakers protects the generator from being overloaded.

4.Certification Compliant

CE / Euro V

Specification

Model SL2500DX SL3800EDX SL6500EDX SL9000EDX SL3800W-SE SL6500W-SE SL9000W-SE
Rated frequency 50HZ / 60HZ 50HZ / 60HZ 50HZ / 60HZ 50HZ / 60HZ 50HZ / 60HZ 50HZ / 60HZ 50HZ / 60HZ
Rated AC Voltage  110V/120V/220V/240V  110V/120V/220V/240V  110V/120V/220V/240V  110V/120V/220V/240V  110V/120V/220V/240V  110V/120V/220V/240V  110V/120V/220V/240V
Rated AC output 2.0 KW / 2.2 KW 3.0 KW / 3.2 KW 5.0 KW / 5.5 KW 7.0 KW / 7.5 KW 3.0 KW / 3.2 KW 5.0 KW / 5.5 KW 7.0 KW / 7.5 KW
Max AC output 2.3 KW / 2.5 KW 3.3 KW / 3.5 KW 5.5 KW / 6.0 KW 7.5 KW / 8.0 KW 3.3 KW / 3.5 KW 5.5 KW / 6.0 KW 7.5 KW / 8.0 KW
DC output 12V-8.3A 12V-8.3A 12V-8.3A 12V-8.3A 12V-8.3A 12V-8.3A 12V-8.3A
Power Factor 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Engine model SL200 SL225 SL390 SL440 SL225 SL390 SL440
Displacement 196 CC 223 CC 389 CC 438 CC 223 CC 389 CC 438 CC
Rated output 4.0 kw / 3600rpm 4.7 kw / 3600rpm 8.8 kw / 3600rpm 11 kw / 3600rpm 4.7 kw / 3600rpm 8.8 kw / 3600rpm 11 kw / 3600rpm
Starting system Recoil start Recoil start & E-start Recoil start & E-start Recoil start & E-start Recoil start & E-start Recoil start & E-start Recoil start & E-start
Fuel tank capacity 15 L 15 L 25 L 25 L 23 L 52 L 52 L
Fuel consumption ≤395g/Kw.h ≤395g/Kw.h ≤372g/Kw.h ≤372g/Kw.h ≤395g/Kw.h ≤372g/Kw.h ≤372g/Kw.h
Continuous hours 9 h 8 h 9 h 7 h 12 h 15 h 12 h
Noise Level at 7m ≤71 dB(A) ≤71 dB(A) ≤73 dB(A) ≤74 dB(A) ≤67 dB(A) ≤69 dB(A) ≤70 dB(A)
Packing Size 610×485×470 mm 610×485×510 mm 710×565×595 mm 710×565×595 mm 850×530×755 mm 952×570×785 mm 952×570×785 mm
Net/Gross weight 42 kg/ 45 kg 56 kg/ 59 kg 96 kg/ 101 kg 98 kg/ 103 kg 110 kg/ 120 kg 147 kg/ 157 kg 153 kg/ 163 kg
20FT/40HQ: 225/455 180/455 128/268 128/268 87/174 72/144 72/144
