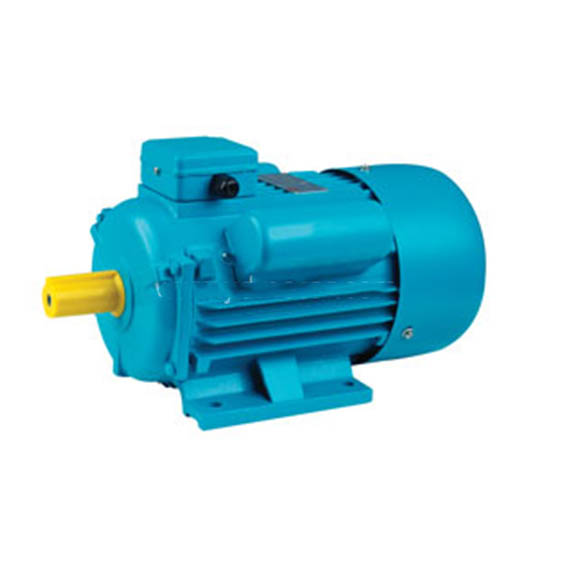

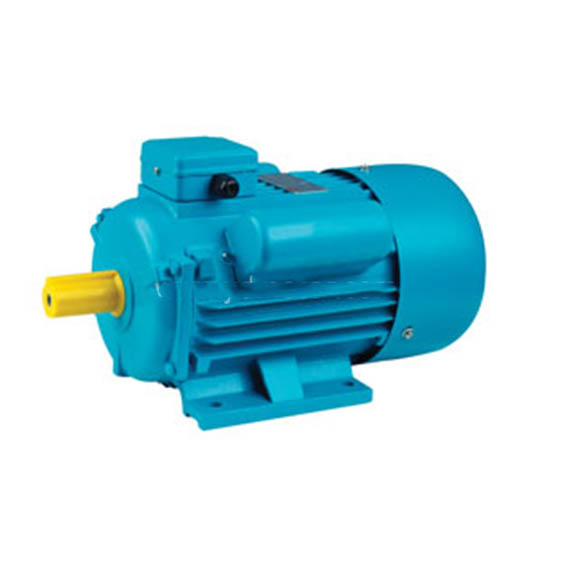

YC series motors are suitable for powering small type drilling machines and water pumps, especially for family workshops where only single-phase current supply is available.
| Model | Output power/voltage(kW/V) | Electric
Current(A) |
Rotation speed(rpm) | Efficiency(%)
|
Power
factor |
Starting
torque |
Starting electric current | Maximum
torque |
| Rated torque(N·m) | Rated
electric current(A)
|
Rated
Torque(N·m) |
||||||
| YC80B-4-0.5HP | 0.37/220 | 4.5 | 1410 | 60 | 0.62 | 2.8 | 6 | 1.8 |
| YC80C-4-0.75HP | 0.55/220 | 6 | 1410 | 64 | 0.65 | 2.8 | 6 | 1.8 |
| YC90S-4-1HP | 0.75/220 | 7.7 | 1410 | 67 | 0.66 | 2.4 | 6.5 | 1.8 |
| YC80C-2-1HP | 0.75/220 | 6.7 | 2810 | 68 | 0.75 | 2.8 | 6.5 | 1.8 |
| YC90L-4-1.5HP | 1.1/220 | 10.5 | 1430 | 70 | 0.68 | 2.4 | 6.5 | 1.8 |
| YC100L-4-2HP | 1.5/220 | 13.5 | 1430 | 72 | 0.7 | 2.4 | 6.5 | 1.8 |
| YC90L-2-2HP | 1.5/220 | 12.1 | 2820 | 72 | 0.78 | 2.4 | 7 | 1.8 |
| YC100L-2-3HP | 2.2/220 | 17.1 | 2830 | 74 | 0.79 | 2.5 | 7 | 1.8 |
| YC112M-4-3HP | 2.2/220 | 19.3 | 1440 | 72 | 0.72 | 2.5 | 6.5 | 1.8 |
| YC132SB-4-5HP | 3.7/220 | 30.3 | 1450 | 75 | 0.74 | 2.5 | 6.5 | 1.8 |
| YC132M-4-7.5HP | 5.5/220 | 29 | 1460 | 78 | 0.81 | 2.5 | 6.5 | 1.8 |
