| ENGINE | |
| Emission Regulation | Tier 2 / Stage II |
| Make | Cummins |
| Model | 6LT9.3 |
| Gross Power | 162 kW (220 hp) @ 2,200 rpm |
| Net Power | 148 kW (201 hp) @ 2,200 rpm |
| Peak Torque | 890 N · m |
| Displacement | 9.3 L |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| LOADER ARM PERFORMANCE | |
| Tipping Load – Straight | 13,414 kg |
| Tipping Load – Full Turn | 11,000 kg |
| Bucket Breakout Force | 167 kN |
| Maximum Dump Angle at Full Height | 45° |
| Dump Clearance at Full Height Discharge | 2,970 mm |
| Dump Reach at Full Height Discharge | 1,200 mm |
| Maximum Hinge Pin Height | 4,020 mm |
| Maximum Digging Depth, Bucket Level | 60 mm |
| Bucket Rollback at Ground Level | 42° |
| Bucket Rollback at Carry | 46° |
| Bucket Rollback at Maximum Height | 59° |
| TRANSMISSION | |
| Transmission Type | Planetary type, power shift |
| Torque Converter | Double stage, four elements |
| Maximum Travel Speed, fwd | 37 km/h |
| Maximum Travel Speed, rev | 14 km/h |
| Number of Speeds, fwd | 2 |
| Number of Speeds, rev | 1 |
| BUCKET PERFORMANCE |
| Reference Bucket 3 m3 |
| AXLES | |
| Differential Front Type | Conventional |
| Differential Rear Type | Conventional |
| Axle Oscillation | ±11° |

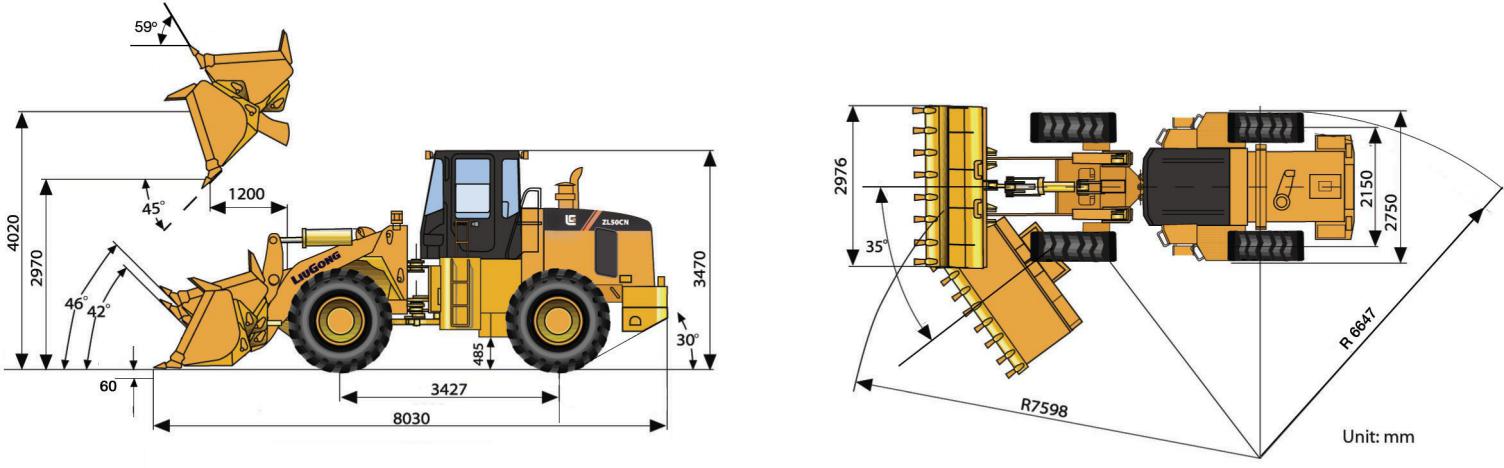

| DIMENSIONS | |
| Length with Bucket Down | 8,030 mm |
| Width Over Tires | 2,750 mm |
| Wheelbase | 3,427 mm |
| Wheel Tread | 2,150 mm |
| Ground Clearance | 485 mm |
| Turn Angle, Either Side | 35° |
| Rear Angle of Departure | 30° |
| Turning Radius, Outside of Tire | 6,647 mm |
| Turning Radius, Center of Tire | 6,347 mm |
| Turning Radius, Bucket Carry | 7,598 mm |
| STEERING |
| Steering Configuration Articulated |
| Steering Relief Pressure 12 Mpa |
| HYDRAULIC SYSTEM | |
| Main Pump Type | Gear |
| Main Relief Pressure | 17 MPa |
| Raise Time | 6.5 s |
| Dump Time | 1.5 s |
| Float Down Time | 3.5 s |
| Fastest Total Cycle Time | 11.5 s |
| SERvICE CAPACITY | |
| Fuel Tank | 300 L |
| Engine Oil | 18 L |
| Cooling System | 50 L |
| Hydraulic Reservoir | 300 L |
| Transmission and Torque Converter | 45 L |
| Axles, each | 32 L |
