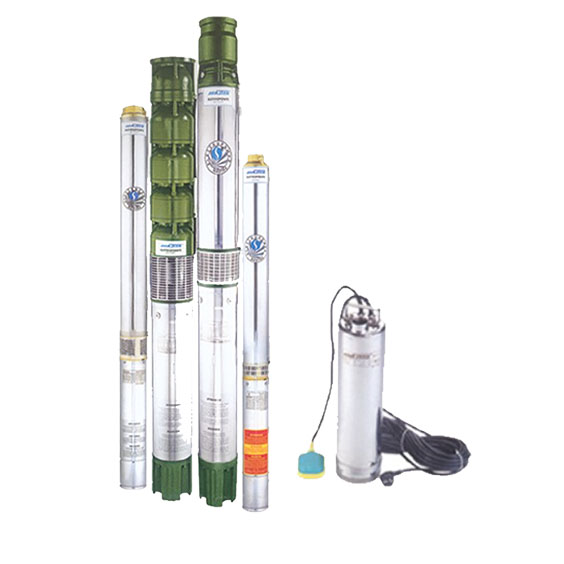

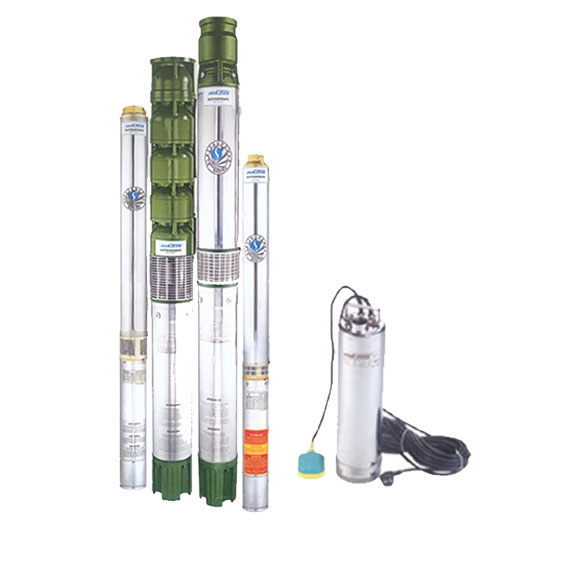

RR Series Submersible Pump

RR Series Submersible Pump  is a kind of water-lifting machine. The machine with submersible motor and submersible pump integrated directly into one set. With rational structure, easy to use, efficient and saving energy, working deep into the water.

It is mainly used for house, small scale farm irrigation to get water from deep well.

Get a Quote Send E-mail

Products

Product-Features

Specification

m³/24h Type-typo Motor power Three- Single- Flow rate/water head m³/h Outlet diameter Applicable well diameter
phase phase
m³/24h HP A A
40m³ R95-S-08 0.5 1.8 3.6 0.6m³/67m 1.2m³/59m 1.8m³/46m 25mm  1″G 100mm
R95-S-12 0.75 2 4.8 0.6m³/98m 1.2m³85m 1.8m³/68m
R95-S-14 1 2.5 6.3 0.6m³/114m 1.2m³98m 1.8m³/80m
R95-S-22 2 4.4 10 0.6m³/180m 1.2m³158m 1.8m³/124m
R95-S-28 3 6.2 14 0.6m³/229m 1.2m³203m 1.8m³/158m
60m³ R95-A-06 0.5 1.8 3.6 1m³/45m 2m³/34m 3m³/24m 30mm  1″1/4G 100mm
R95-A-08 0.75 2 4.8 1m³/60m 2m³/50m 3m³/40m
R95-A-12 1 2.5 6.3 1m³/91m 2m³/80m 3m³/56m
R95-A-20 2 4.4 10 1m³/155m 2m³/137m 3m³/102m
R95-A-30 3 6.2 14 1m³/225m 2m³/200m 3m³/145m
100m³ R95-VC-09 1 2.5 6.3 3m³/55m 4m³/48m 5m³/36m 40mm  1″1/2G 100mm
R95-VC-12 1.5 3.4 8.6 3m³/76m 4m³/64m 5m³/48m
R95-VC-16 2 4.4 10 3m³/101m 4m³/85m 5m³/64m
R95-VC-20 3 6.2 14 3m³/130m 4m³/107m 5m³/85m
150m³ R95-BF-11 2 4.4 10 4m³/71m 5m³/62m 6m³/51m 40mm  1″1/2G 100mm
R95-BF-18 3 6.2 14 4m³/108m 5m³/92m 6m³/83m
R95-BF-23 4 8.3 – 4m³/146m 5m³/128m 6m³/102m
R95-BF-32 5.5 10.3 – 4m³/201m 5m³/176m 6m³/140m
R95-BF-40 7.5 14 – 4m³/251m 5m³/220m 6m³/175m
200m³ R95-DF-13 3 6.2 14 6m³/73 8m³/61m 10m³/40m 50mm  2″G 100mm
R95-DF-20 4 8.3 – 6m³/115 8m³/90m 10m³/65m
R95-DF-30 7.5 14 – 6m³/169 8m³/143m 10m³/98m
300m³ R95-MA-17 5.5 10.3 – 8m³/82m 10m³/75m 12m³/65m 50mm  2″G 100mm
R95-MA-22 7.5 14 – 8m³/109m 10m³/100m 12m³/90m
Model
(50HZ)		 Power Voltage P/RPM Max Flow Max Head Outlet  Max Particle
w HP V P/rmp m³/h m mm mm
MOP100 100 1/8 220 2P/2850 7 9 11/18.5 3.4
MOP250 250 1/3 220 2P/2850 9.5 11 11/18.5 3.4
MSP100 100 1/8 220 2P/3450 9 7.4 11/18.5 3.4
