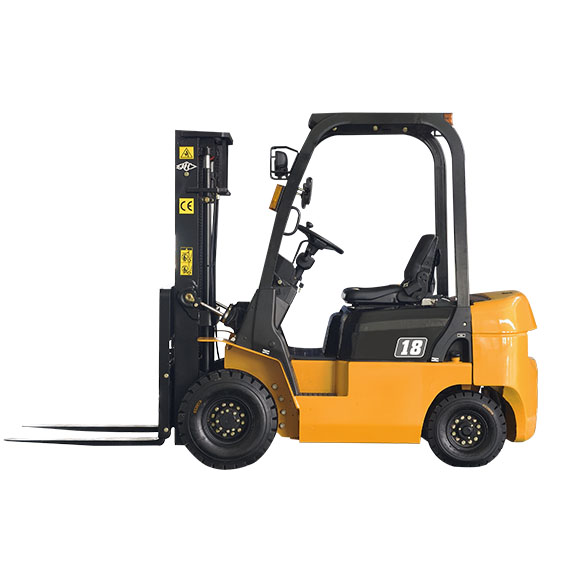

RG series Forklift

ENVIRONMENT FRIENDLINESS:The environment friendly CUMMINS engines all meet related exhaust emissions regulations. And the Chinese engines are also available for customers’ choice. The noise level also comes up to EU standards.

COMFORTABLE OPERATION:Spacious operator cabin with very low vibration and noise, as well as clean air, are enjoyed by operators.

Product-Features

1.ENVIRONMENT FRIENDLINESS

The environment friendly CUMMINS engines all meet related exhaust emissions regulations. And the Chinese engines are also available for customers’ choice. The noise level also comes up to EU standards.

2.COMFORTABLE OPERATION

Spacious operator cabin with very low vibration and noise, as well as clean air, are enjoyed by operators.

3.RELIABILITY

By focusing on enhancing reliability, reducing downtime, the 5-7t forklift trucks are able to make the greater productivity for customer.

4.EASY MAINTENANCE

Along with the kind of engineering that promises unsurpassed performance and productivity in all applications, Camco heavy-duty forklift trucks are designed with many features that facilitate maintenance and servicing.

Specification

Model Unit CPC(D)15-RG26 CPC(D)20-RG2 CPC(D)25-RG2 CPCD35N-RG2(3.5)
Engine type



diesel diesel diesel diesel
Rated load weight Q (kg) 1500 2000 2500 3500
Load center distance c(mm) 500 500 500 500
Weight kg 2720 3450 3850 4750
Fee lifting height h2 (mm) 155 160 160 170
Maximum Lifting Height of gantry h4 (mm) 3955 4045 4045 4140
Overall length

(vertical length to the forklift)

l2 (mm) 2285 2540 2610 2780
Total width b1(mm) 1090 1155 1155 1225
Fork dimensions

(length×width×thickness)

l/s/e(mm) 920×100×35 1070×122×40 1070×122×40 1070×122×50
Minimum turning radius Wa (mm) 2035 2270 2330 2440
Max running speed

Full load/No-load)

km/h 16.5/17.5 20/21 20/21 18/19
Maximum lifting speed

Full load/No-load

m/s 0.5/0.55 0.55/0.60 0.55/0.60 0.38/0.45
Engine manufacturer/model Xinchai

4D27XG30

Xinchai

4D32XG30

Xinchai

4D32XG30

Xinchai 4D32XG30
Engine power kW/r/min 34/2500 45/2500 45/2500 45/2500
Maximum torque/rotation speed N·m/r/min 140/1000-1800 200/1000-2000 200/1000-2000 200/1000-2000
Cylinder amount/displacement mL 4/2670 4/3168 4/3168 4/3168
