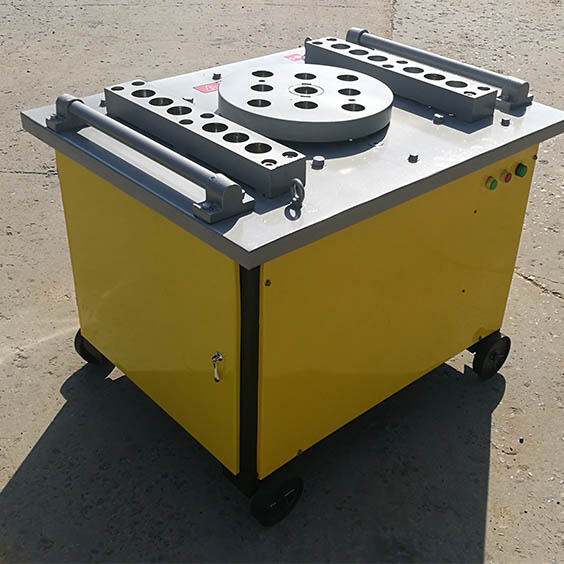

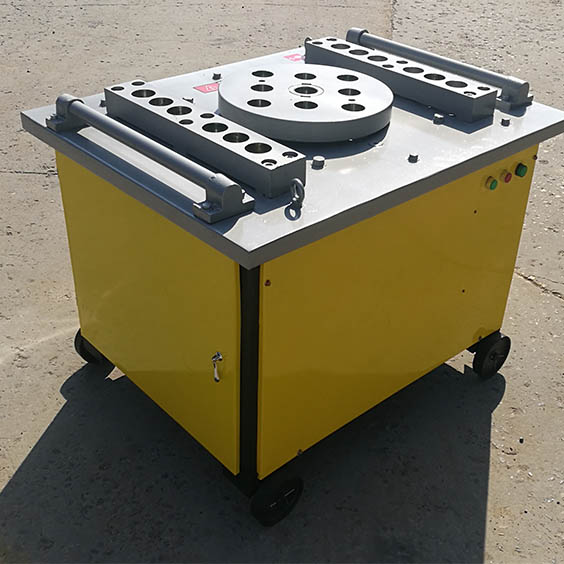

Reinforcing Bar Bending Machine can bend the geometry of the required reinforcement in engineering, greatly reducing the working intensity of workers, improve the production efficiency.
| Model | GW40 | GW50 |
| Electric motor | 3KW/3-380V/50HZ | 4KW/3-380V/50HZ |
| Max Bending diameter（normal round bar） | 6-40mm | 6-45mm |
| Max Bending diameter（II deformed bar） | 6-32mm | 6-36mm |
| Bending Frequency | 5/10times/min | 5/10times/min |
| Control way | Manual，NC or full automatic | Manual，NC or full automatic |
| N.W | 279kg | 345kg |
| G.W | 309kg | 365kg |
| Packing Size(mm) | 1080×850×1000mm | 1080×850×1000mm |
