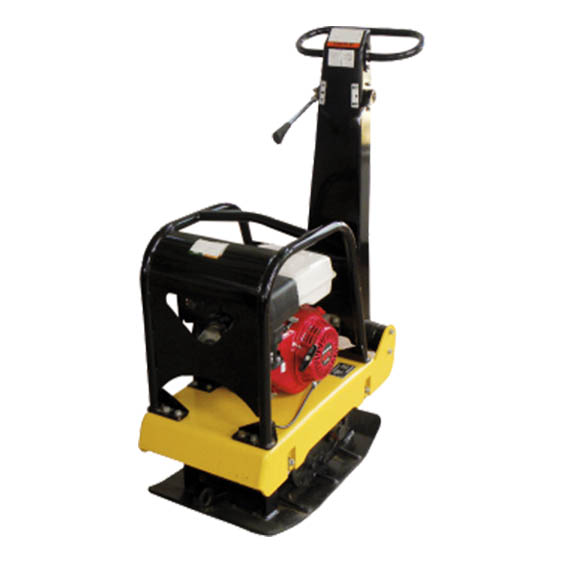

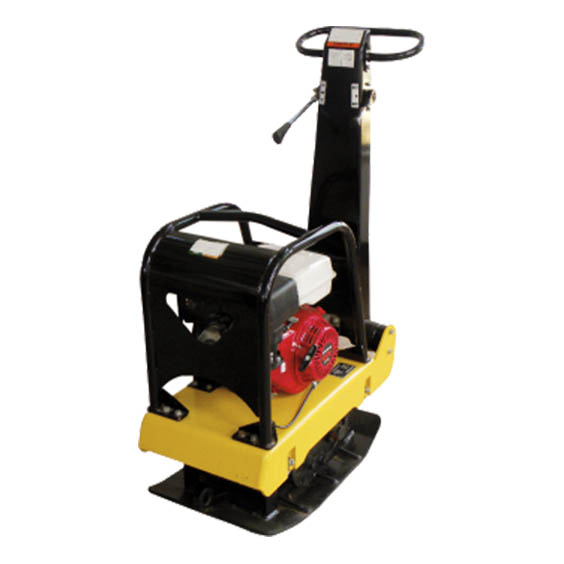

The Plate Compactor is used to tamper engineering foundation, road margin and asphalt surface on constructing road, street, building, ditch and bridge in the field of road, municipal engineering, construction and water conservancy etc. It is better used tamping of narrow laneway.
| Model | RWBH23 | RWBH31 | RWBH41 |
| Walk | |||
| Speed | 25m/min | 23m/min | 22m/min |
| Theoretical climbing ability | 25% | 25% | 25% |
| Compaction | |||
| Nominal amplitude | 0.7mm | 0.5mm | 0.7mm |
| Vibration frequency | 85Hz | 75Hz | 70Hz |
| Excitation force | 20kN | 30kN | 38kN |
| Water tank capacity | 12L | ||
| Engine | |||
| Model | HONDA GX160 | HONDA GX160 | HONDA GX270 |
| Type | Gasoline engine, air-cooling, 4 stroke OHV, single cylinder | Gasoline engine, air-cooling, 4 stroke OHV, single cylinder | Gasoline engine, air-cooling, 4 stroke OHV, single cylinder |
| Power | 5.5hp/3600rpm | 5.5hp/3600rpm | 9.0hp/3600rpm |
| Fuel tank capacity | 3.6L | 3.6L | |
| Dimension | |||
| Plate size | 600x500mm | 712x400mm | 712x460mm |
| Packaging size | 820x570x650mm | 950x640x1300mm | 900x640x1330mm |
| Overall length（handrail lay flat） | 1150mm | 1480mm | 1240mm |
| Total width | 500mm | 400mm | 420mm |
| Overall height（handrail pack up） | 560mm | 1200mm | 1450mm |
| Weight | |||
| Working weight | 120kg | 165kg | 240kg |
