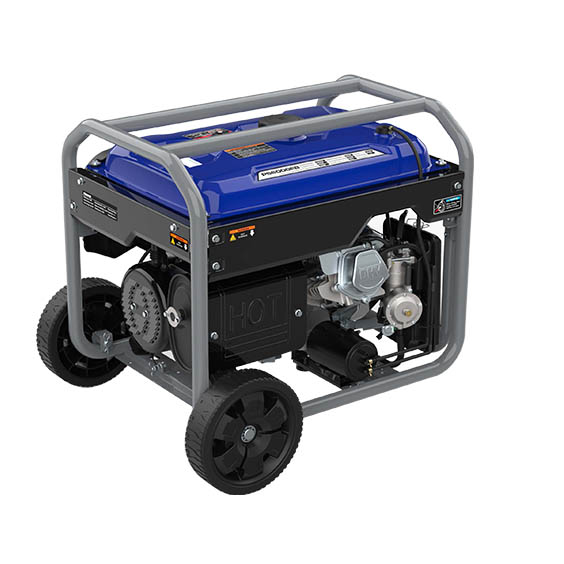

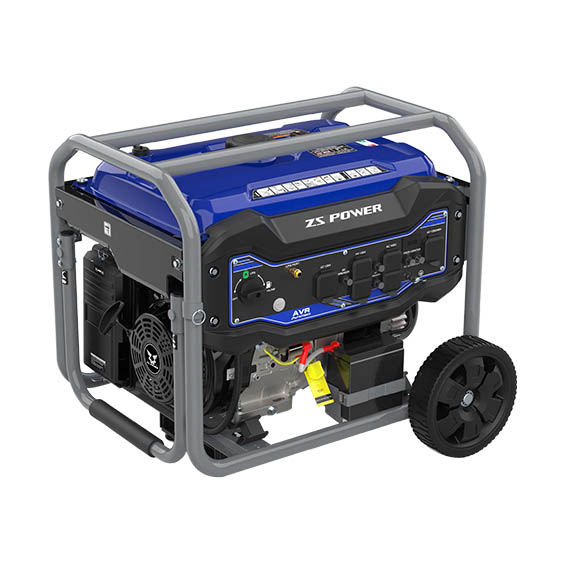

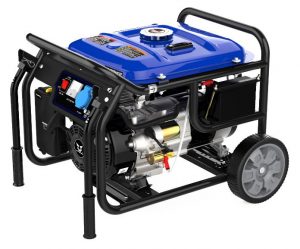

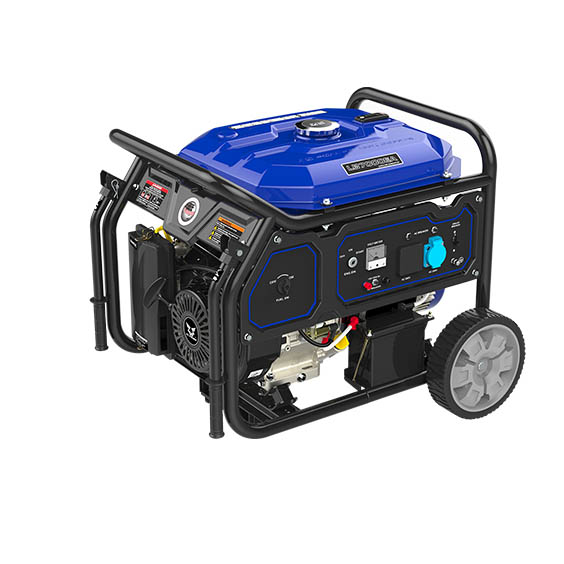

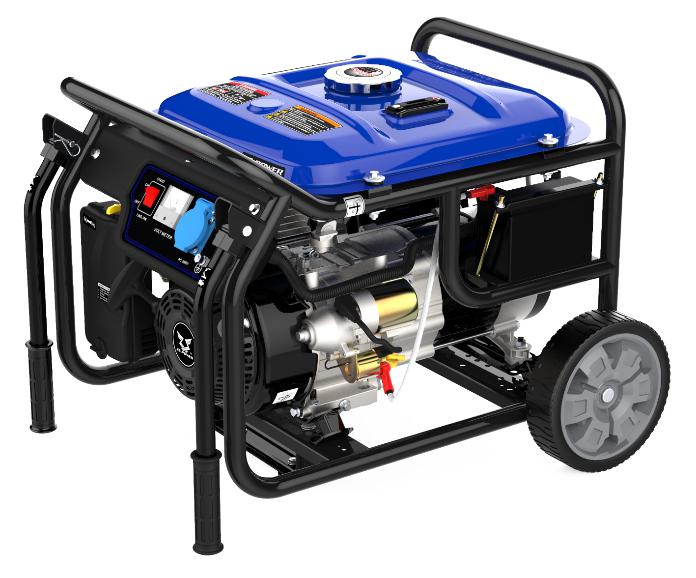

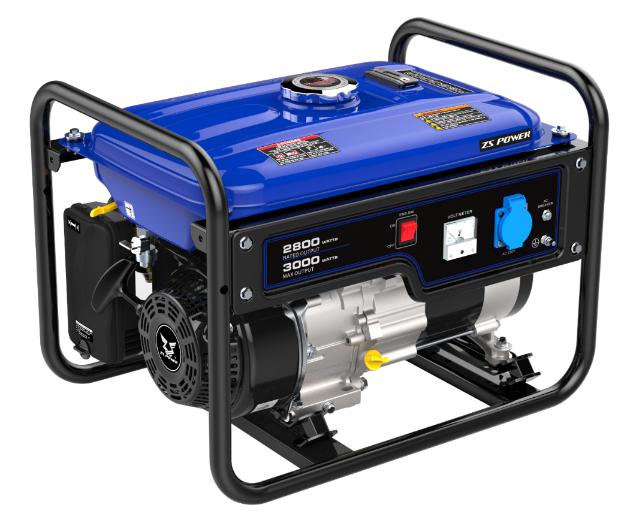

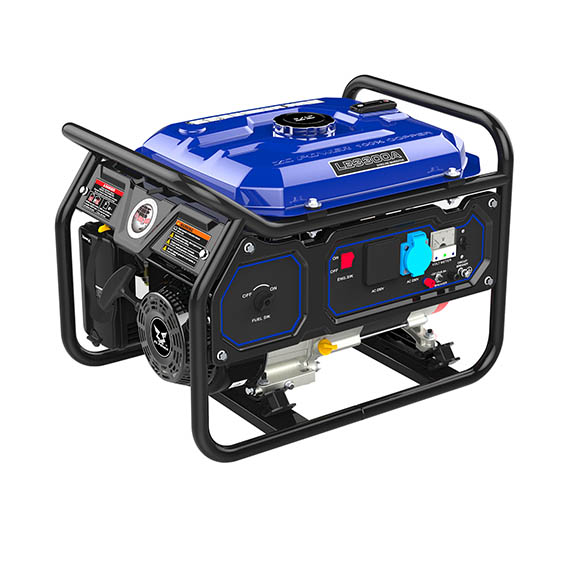

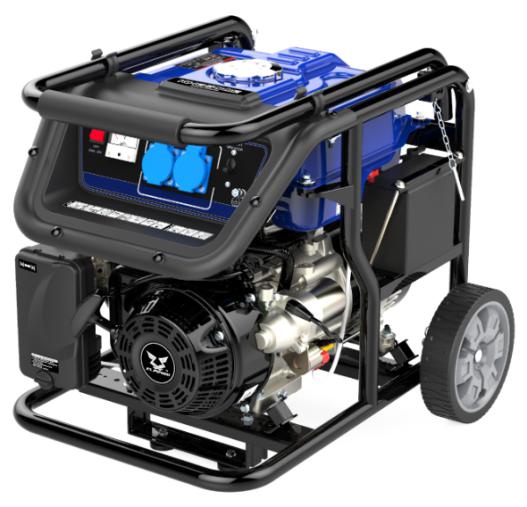

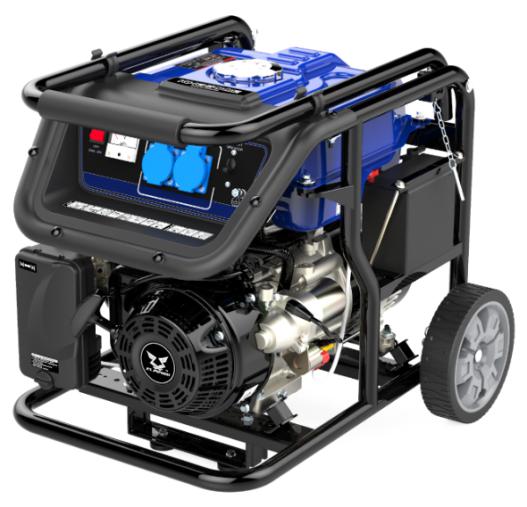

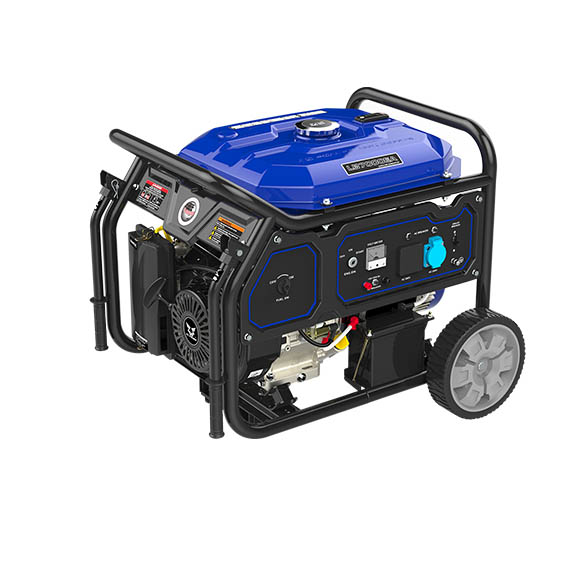

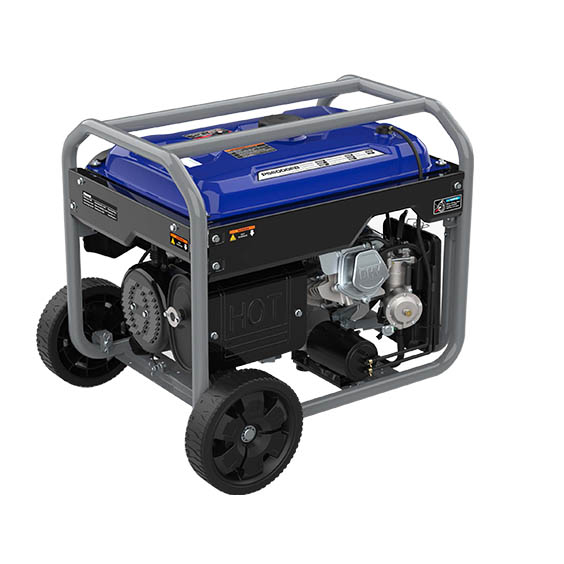

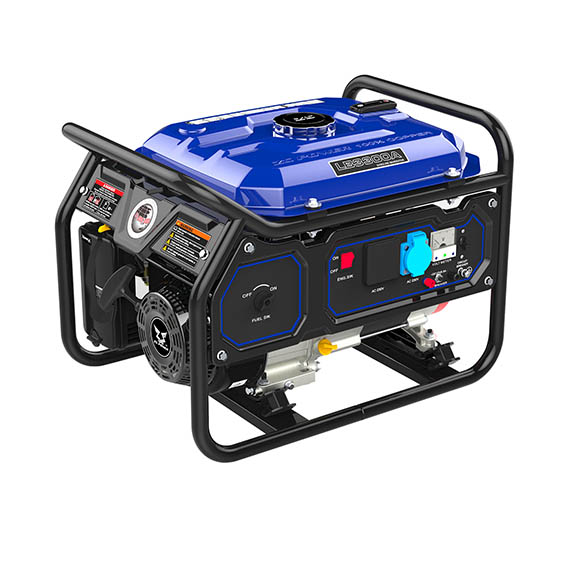

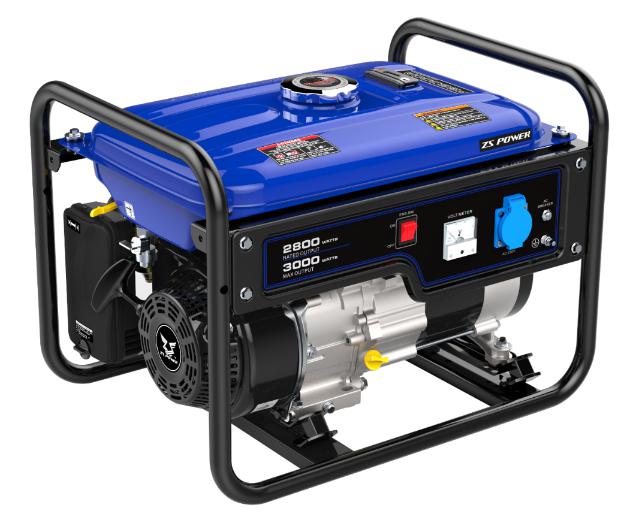

PB series Gasoline Generator

  • More durable,High quality frame
  • More reliable:Full curved high strength tank
  • Much easier:Integrated control panel
  • More convenient:Easier to use and maintain
  • More visual:Pointer fueltank cap
  • More portable :Luggage style handle

Product-Features

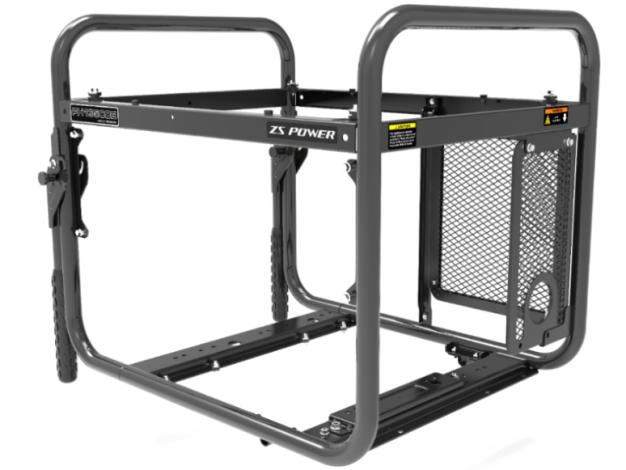

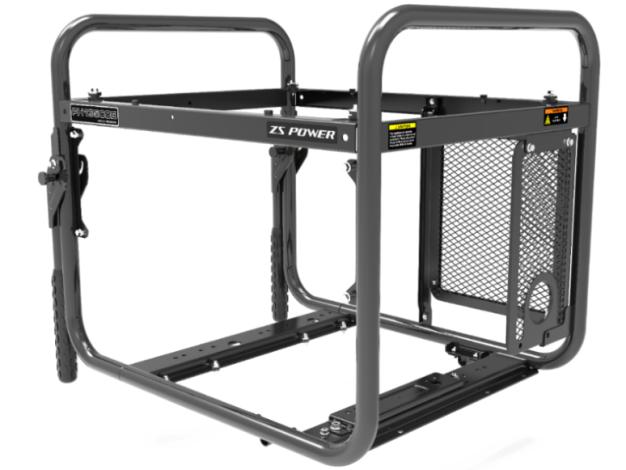

1.More durableHigh quality frame

The three types of generator frame are all made of Q235 welded pipes and fully automatic robot welding.Strong welding, beautiful welding spot, effective protection of the unit, meet the requirements of different operating environment to ensure the use of drag, pull, push, fall, pressure……the frames are not deformed.



2.More reliable:Full curved high strength tank

The three types of generator fuel tank are all made of ST14 material, which can bear up to 100kg without deformation through CAE finite element analysis. Closed seam welded seal, with metal tank cap, endurance up to 20 years.

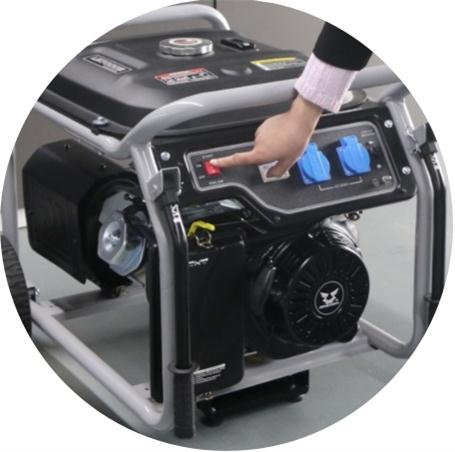

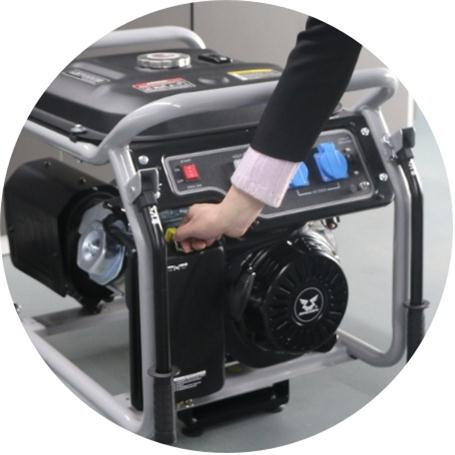

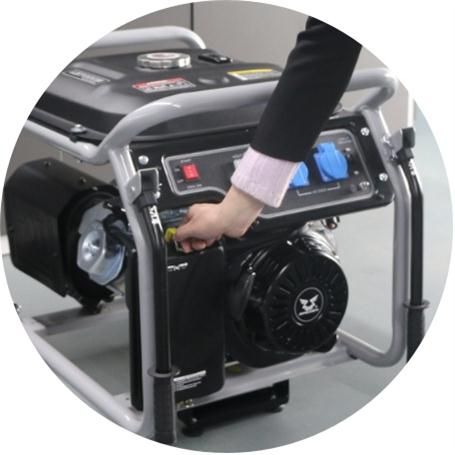

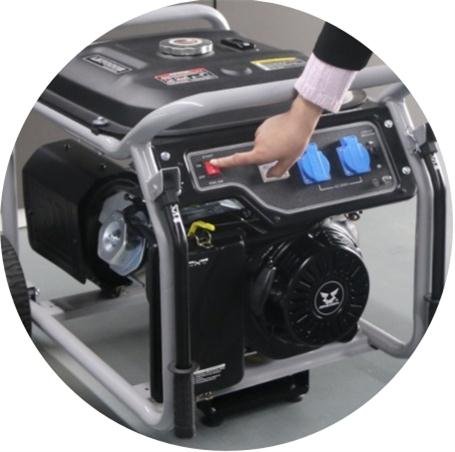

3.Much easier:Integrated control panel

All control buttons are integrated on one panel, clear and easy to operate. Combined with graphic operation instructions and warning signs, a new user can operate easily.



4.More convenient:Easier to use and maintain

The battery is placed independently on the upper end of the frame.Height from the ground 309mm,276mm higher than ordinary generator battery,Convenient maintenance for users.

5.More visual:Pointer fueltank cap

K-series has pointer fuel tank cap. Precise and unique, fuel remaining can be seen clearly without open the cap. The pointer fuel cap is more durable and visual.

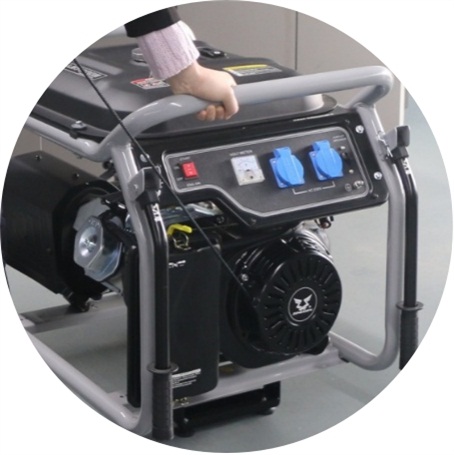

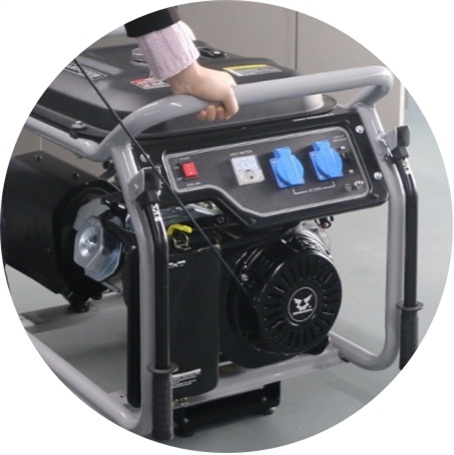

6.More portable :Luggage style handle

K-series adopts luggage style handle,with moving wheels.When moving, the center of gravity is on the wheel, easy to drag, pull and rotate the whole machine.It is no longer difficult to operate and transport.

Specification

PB 2500A PB 3000A PB 3300A PB 3700A
1  Starting System Recoil/E Start Recoil/E Start Recoil/E Start Recoil/E Start
2  Alternator Material Cu Al Cu Al Cu Al Cu Al
3  Frequency (Hz) 50 60 50 60 50 60 50 60
4  Voltage(V) 230 120(120/240) 230 120(120/240) 230 120(120/240) 230 120(120/240)
5  Rated Output (KW) 2 2 2.5 2.5 2.8 3 3 3.3
6  Max. Output(KW) 2.2 2.2 2.8 2.8 3 3.3 3.3 3.7
7  THD(%) ≤20 ≤20 ≤20 ≤20
8  Running Time At 50% loading(H) 13 13 11.5 11.5 10.5 9.5 10.5 9.5
9  Fuel Tank Size (L ) 15 15 15 15
10  Noise dB(A)(7m) 72~75 72~75 72~75 72~75
11  Insulation Grade F F F F
12  Engine Model GB210-2 GB210-2 GB210-2 GB225-2
13  Engine Type OHV,Air Cooling,4Stroke OHV, Air Cooling, 4 Stroke OHV, Air Cooling, 4 Stroke OHV, Air Cooling, 4 Stroke
14  Displacement (cc) 208 208 208 224
15  Outside Packing Dimensions (mm)(L x W x H) 610×450×475 610×450×475 610×450×475 610×450×475
16  Net Weight (kg) 39 46 48 50
17  Certifications(Blue letters:Available Products Waiting To Be Certified) CE、Euro V EPA、CARB CE 、Euro V EPA、CARB CE 、Euro V EPA、CARB EuroV EPA、CARB
18  Container load(20‘GP/40’GP/40’HQ) 184/338/485 184/388/485 184/388/485 184/388/485
