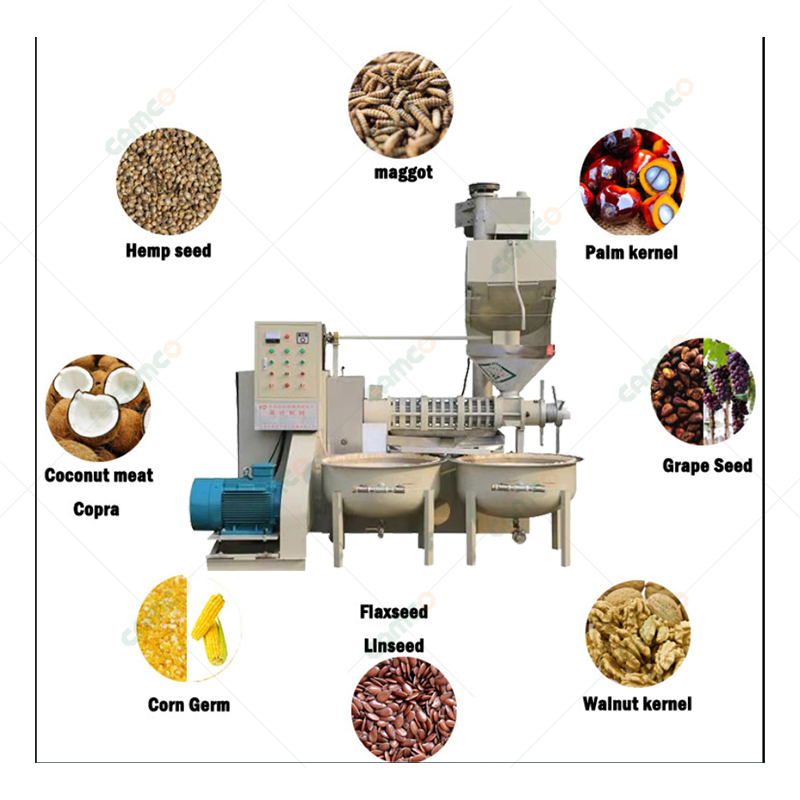

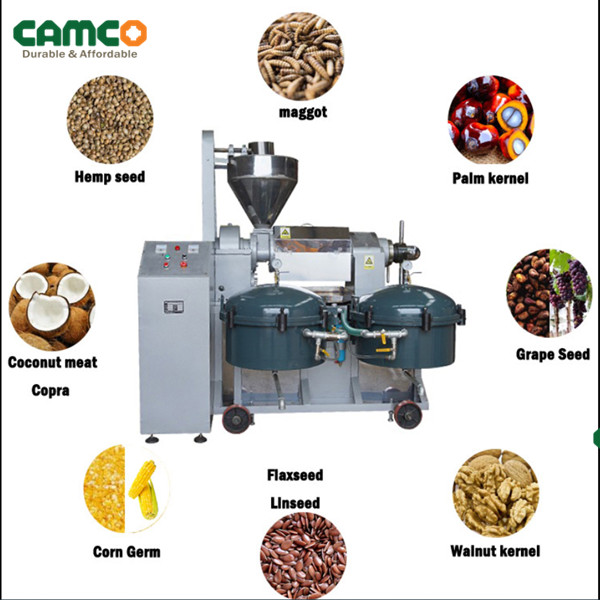

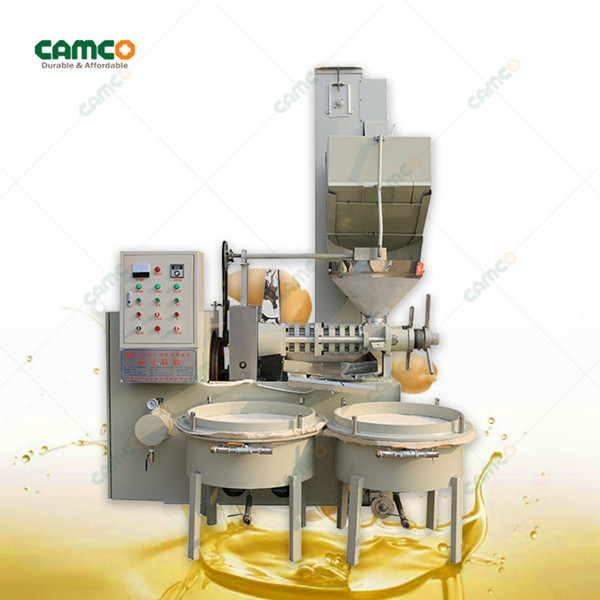

This oil press machine for cold-press with raw materials, and the materials can be directly into the press effectively. Widely used for canola, soybean, peanut, sunflower seed, cottonseed, tung seed and other oil crops. Oil cake residue can be used as fertilizer, feed and so on.
The machine composes of Base frame, oil filtering system, drive system, feeding system,controlling system and mainframe.
| Model | 6YL-125 | ||
| canola | Sunflower seed | peanut | |
| Engine power | 15kw | 15kw | 15kw |
| Rotating speed(shift/minute) | 100-120r/m | 100-120r/m | 100-120r/m |
| Productivity(kg/h) | 120-150 | 120-150 | 120-150 |
| Oil content rate(%) | 36-44 | 39-45 | 43-53 |
| Oil extraction rate(%) | 32-43 | 36-42 | 38-50 |
| dry cake residual oil rate(%) | 6-7 | 6-7 | 6-7 |
| voltage | 380v | 380v | 380v |
| Dimension(mm) | 1750*1700*1550 | 1750*1700*1550 | 1750*1700*1550 |
| weight | 920kg | 920kg | 920kg |
