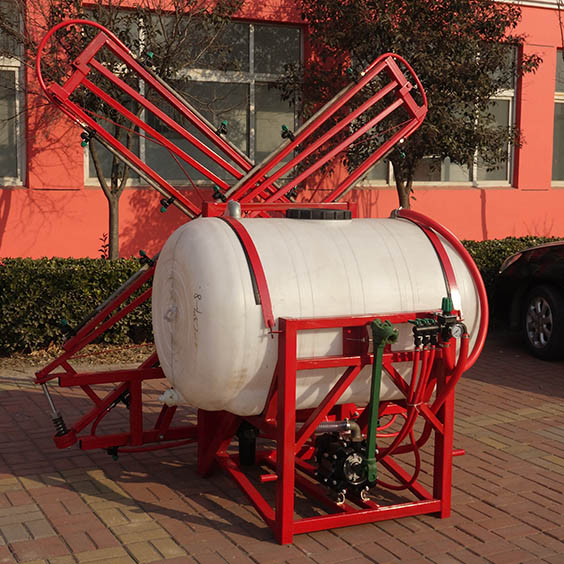

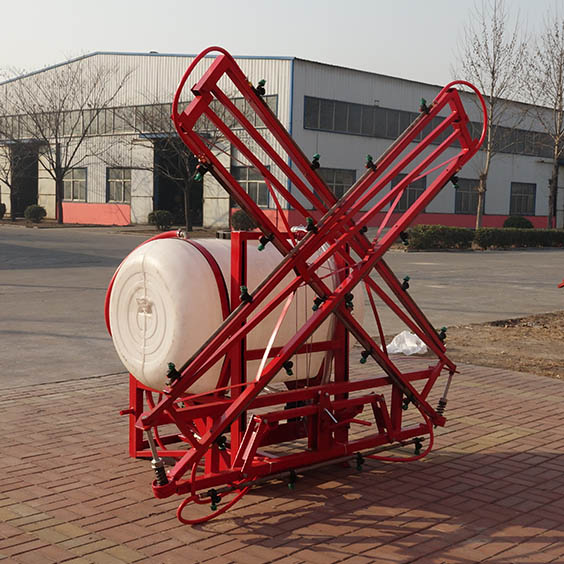

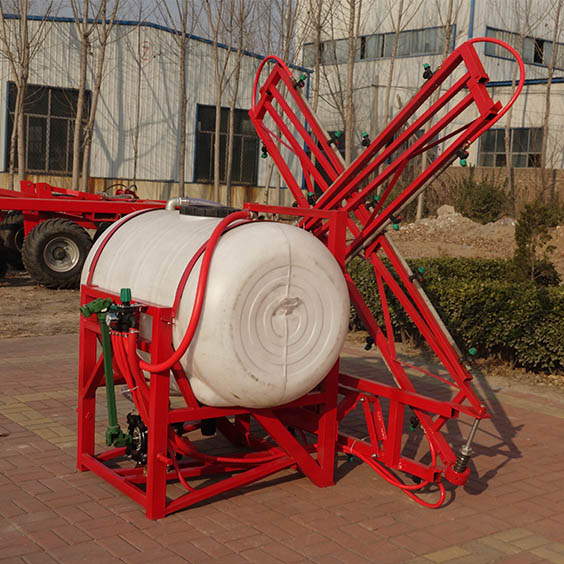

Mounted Boom Sprayer is widely praised by the owners of small and medium-size farms by virtue of its simplicity and flexibility.
Compactly designed, easy to operate and cost little in maintenance, it could connect with the tractor quickly and easily. The water pump it equipped with is high-pressure diaphragm pump, which shall greatly prolong its working life. In addition, the properly designed three-section spraying irrigation system is more agile.
| Model | 3W-200 | 3W-300 | 3W-400 |
| Fitted power | 12-15HP | 15-20HP | 18-40HP |
| Case volume | 200L | 300L | 400L |
| Working width | 6M | 6M | 6M |
| Total weight | 80kg | 90 | 123 |
| Model | 3W-500 | 3W-700 | 3W-900 | 3W-1000 |
| Fitted power | 30-45HP | 45-70HP | 55-80HP | 70-100HP |
| Case volume | 500L | 700L | 900L | 1000L |
| Working width | 10M | 10M | 10M | 10M |
| Total weight | 240 | 310 | 350 | 380 |
