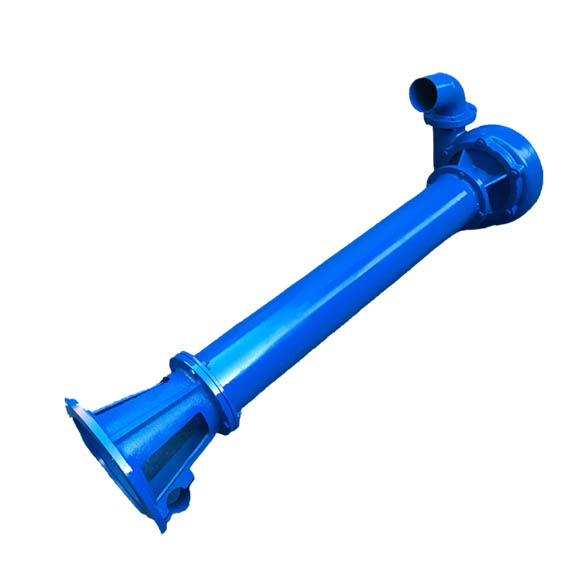

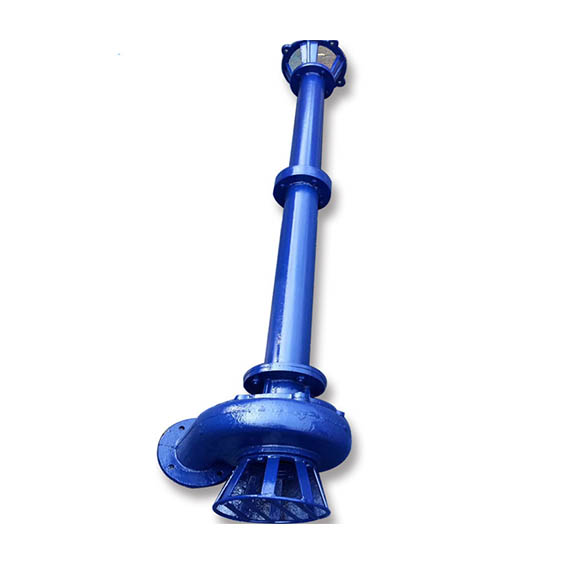

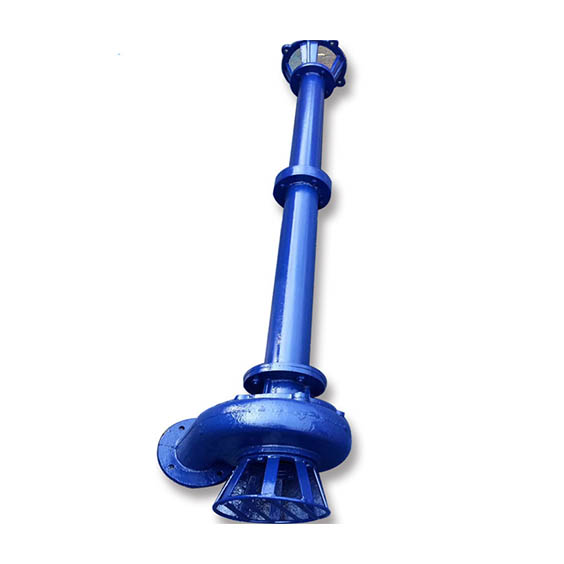

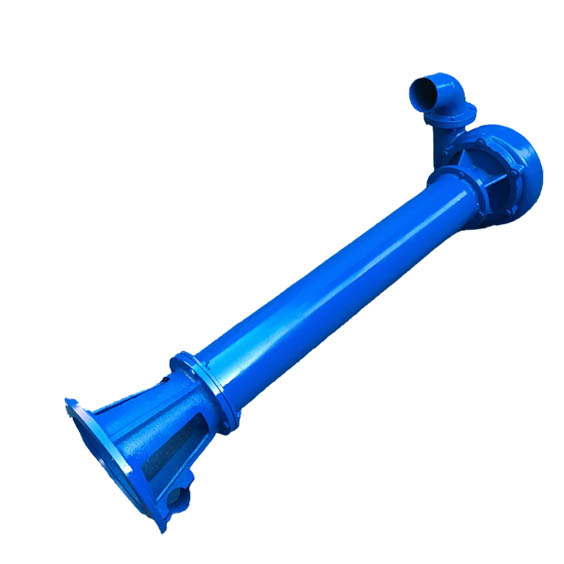

Mortar pump

The pump is a single-stage single-suction vertical centrifugal pump, the main components are volute, impeller, pump housing, pump housing, supporting cylinder, motor housing, motor, etc. Volute, pump housing, motor housing, impeller nuts are cast iron, which has the features of good corrosion resistance, corrosion resistance and convenient processing technology.

Product-Features

The pump is a single-stage single-suction vertical centrifugal pump, the main components are volute, impeller, pump housing, pump housing, supporting cylinder, motor housing, motor, etc. Volute, pump housing, motor housing, impeller nuts are cast iron, which has the features of good corrosion resistance, corrosion resistance and convenient processing technology.

Specification

Model Name Lift                      m Flow                          m3/h Distribution power                 kw Rotate Speed                    r/min
75NL Mortar pump 16 50 7.5 1450
100NL Mortar pump 20 150 15 1450
150NL Mortar pump 20 250 22 1450
200NL Mortar pump 30 400 37 1450
