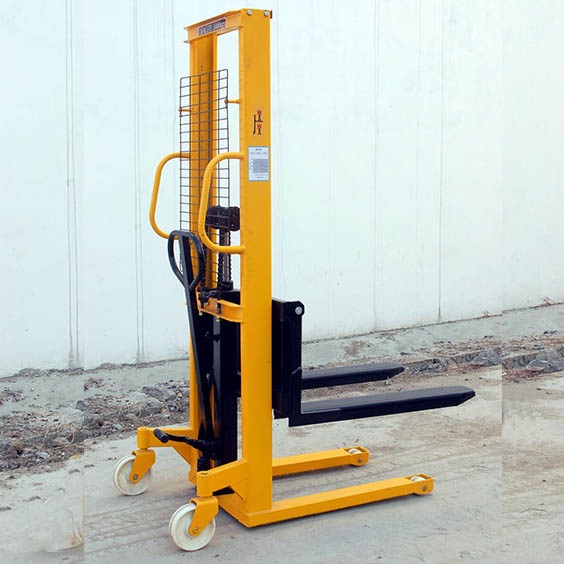

The lift lifts the weights with a manual or pedal hydraulic device, and loads weights with manual pull and push at a low position.The descending speed is controlled through the pedal, ensuring the correct action of the hydraulic system and safety.
| Model | CTY0.5 | CTY1.0 | CTY1.5 | CTY2.0 |
| Capacity（kg） | 500 | 1000 | 1500 | 2000 |
| Maximum lifting height(A)(mm) | 1500 | 1500 | 1500 | 1500 |
| Fork length(E)(mm) | 800 | 800 | 900 | 900 |
| Adjustable width fork face(J)(mm) | 160-446 | 300-710 | 300-740 | 260-600 |
| Lifting speed(mm/time) | 50 | 20 | 14 | 14 |
| Forelegs outside width（mm）M | 620 | 630 | 696 | 770 |
| Dimensions（mm） | 1250×620×1965 | 1364×740×1888 | 1485×770×1934 | 1545×770×1922 |
| Weight（kg） | 125 | 175 | 205 | 290 |
