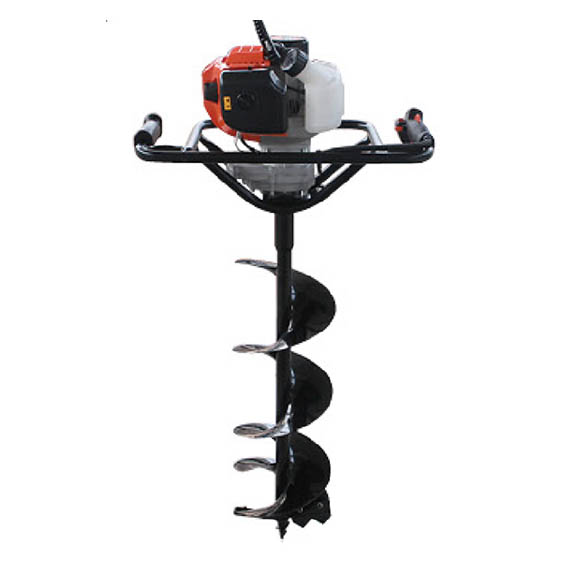

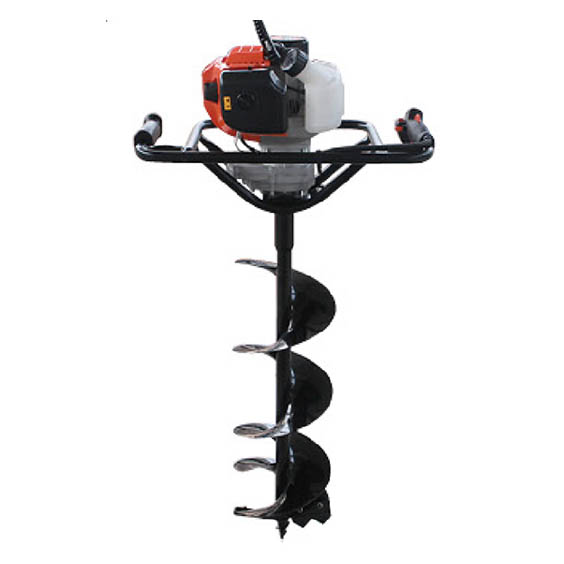

Hole Digger

  • New optimized design, thickened chromeplated cylinder block, integral carburized and quenched crankshaft with high precision, to meet long time and high strength use.
  • Digital speed limit magneto, boutique carburetor fuel consumption is 30% lower, strong power.
  • Double spring starter, easier operation and less effort.
  • Directly connected reduction gear box, high transmission efficiency, long service life.

Product-Features

1.New optimized design, thickened chromeplated cylinder block, integral carburized and quenched crankshaft with high precision, to meet long time and high strength use.

2.Digital speed limit magneto, boutique carburetor fuel consumption is 30% lower, strong power.

3.Double spring starter, easier operation and less effort.

4.Directly connected reduction gear box, high transmission efficiency, long service life.

5.Use alloy cutter head, long service life, high working efficiency and large soil discharge.

6.The control frame is of separate shock absorption structure with small vibration and comfortable operation.

Specification

Parameter AG43G
Displacement(cc) 42.7
Power/rotating speed(Kw/rpm) 1.25/6500
Reducing speed ratio 40:1
 Standard drill diameter(mm) 150
Operation speed Single operation
Weight (Kg) 9
Size (mm) 540*370*350(main engine)

780*170*170(drill )
