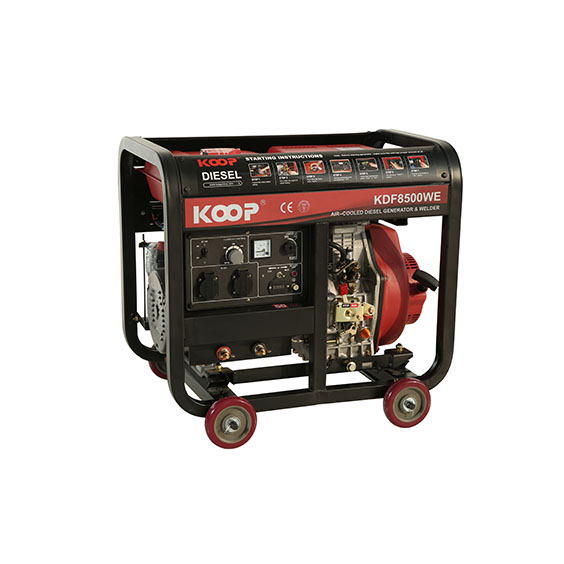

Portable welding generator series is a dual use unit featuring welding and power generation.
This generator set is developed upon the latest technology built upon 10 year history of manufacturing welders/generators.
The power supply for welding is self-driven. It can be used in a host of applications- railroading, highway construction, port operations, oil fields, chemical plants, building construction, agriculture and many more. Self-excitation and constant voltage enhance the generator performance.
The lightweight and compact design facilitates on-site maneuverability and saves storage space.
| Model | KDF6700WE | KDF8500WE |
| Rated Frequency [Hz] | 50 | |
| Rated Voltage [v] | 230 | |
| Rated Output Power [Kva] | 2 | |
| Welding Voltage Without Load | 50~65 | |
| Rated Current | 160 | 200 |
| Work Voltage | 25~30 | |
| Current Regulation Range | 50~180 | 70~220 |
| Welding Load Continuous Ration | 0.6 | |
| Phase Number | Single Phase | |
| Excitation Transistorized | Self-excitation , brush | |
| Power Factor Cos Φ | 1 | |
| Insulation Grade | F | |
| Fuel Tank Capacity [L] | 12.5 | |
| Frame Type | 25 * 25mm Squre tube frame 25 * 25mm | 35 * 35mm Squre tube frame 35 * 35mm |
| Engine Model | KD186FAE | KD192FE |
| Starting System | Electric start | |
| Engine Type | 1-Cylinder ,4-Stroke, Air-cooled,Veritical | |
| Broke * Stroke [mm] | 86 * 72 | 92*75 |
| Displacement [L] | 0.418 | 0.499 |
| Compression Ratio | 19.5 | |
| Rated Rotation Speed [rpm] | 3000 | |
| Rated Power [Kw] | 5.8 | 7.6 |
| Power-take-off | Crankshaft | |
| Lube [L] | 1.65 | |
| Fuel Type | 0#(summer), -10#(winter) Diesel oil diesel: 0#(summer), -10#(winter) | |
| Lube | SAE10W30 ( above CD grade ) SAE10W30 (above CD grade) | |
| Low Oil Pressure Alarm System | With | |
| Overall Diemension [mm] ( L*W*H) | 750*515*630 | 750*515*640 |
| Net Weight [kg] | 116 | 150 |
