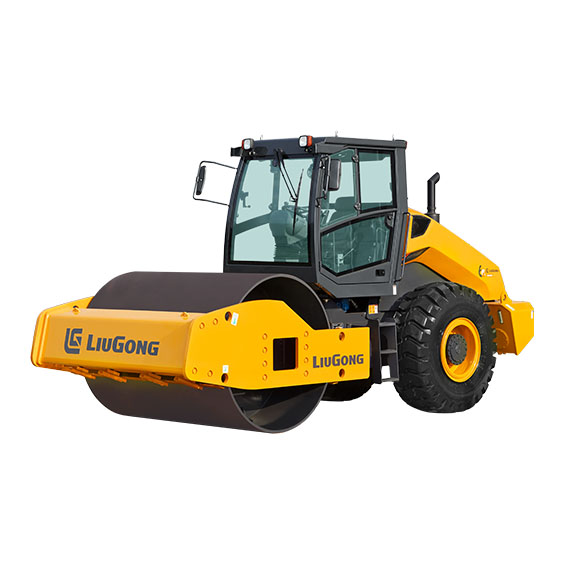

CLG series Road Roller

Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing’s working life to beyond 10,000 hours increasing productivity and reducing part wear.

With a larger diameter drum, combined with amplitude consistency and uniformity, we ensure that the optimum compaction force is delivered with fewer passes required.

Product-Features

Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing’s working life to beyond 10,000 hours increasing productivity and reducing part wear.

With a larger diameter drum, combined with amplitude consistency and uniformity, we ensure that the optimum compaction force is delivered with fewer passes required.

Patented cooling technology inside the drum keeps temperatures balanced at around 90° centigrade, 20°lower than the industry average. This stable temperature regulation helps prolong component life and reduces maintenance.

Specification

Model CLG6120E
Operating Mass 20000 kg
Mass On Vibrating Drum 10000 kg
Mass On Drive Axle 10000 kg
Front Drum Static Linear Load 460 N/cm
Engine Model Shangchai SC8D180.3G2B1
Emission Regulation Stage II
Rated Power 132 kW (180 hp) @ 1800 rpm
Vibration Frequency 28/33 Hz
Nominal Amplitude 2.0/1.3 mm
Centrifugal Force 380/280 kN
Drum Diameter 1600 mm
1st Maximum Speed, fwd 2.7 km/h
2nd Maximum Speed, fwd 5.2 km/h
3rd Maximum Speed, fwd 11 km/h
Theoretical Gradeability 30%
Min. GroundClearance 450 mm
Wheelbase 3230 mm
Min. Outside Turning Radius 7000 mm
Overall Length 6608 mm
Overall Width 2340 mm
Overall Height 3150 mm
