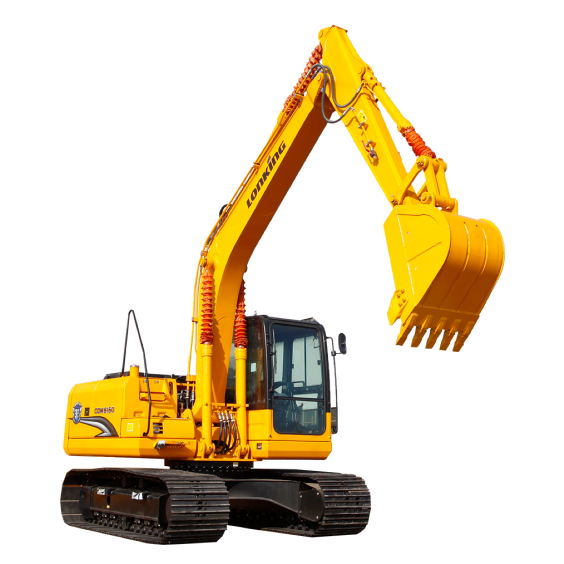

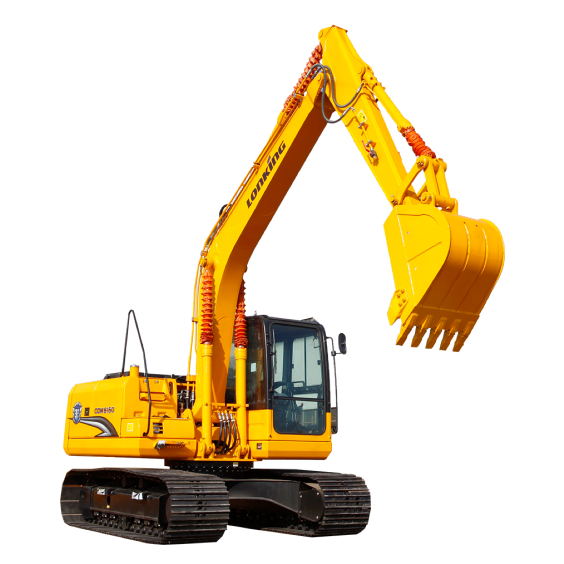

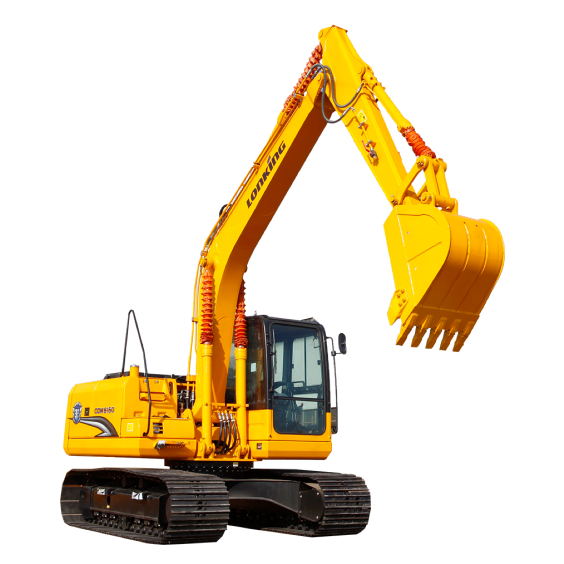

Excavator

This type of Excavator has Three-stage air and fuel filtering system.

  • Air-air inter cooling system with parallel radiator  with automatic adjustment distribution.
  • Multi-purpose true color monitor with large screen.
  • No frame cab glasses to enlarge the visual field.
  • High performance and healthy A/C allows the air circulate .
  • Comfortable suspension seat with hydraulic damper .
  • Free maintenance track with non- lubricated pins.
  • Heavy-duty boom and arm with high strength low alloy structural steels.
  • Heavy-duty bucket with high strength and wear-resistant steels.

Product-Features

Three-stage air and fuel filtering system.
Air-air inter cooling system with parallel radiator  with automatic adjustment distribution.
Multi-purpose true color monitor with large screen.
No frame cab glasses to enlarge the visual field.
High performance and healthy A/C allows the air circulate .
Comfortable suspension seat with hydraulic damper .
Free maintenance track with non- lubricated pins.
Heavy-duty boom and arm with high strength low alloy structural steels.
Heavy-duty bucket with high strength and wear-resistant steels.

Specification

Model CDM6365H CDM6240 CDM6065E
General Operating weight( kg) 34000 22600 6050
Standard bucket(m³) 1.6 1.16 0.25
Bucket range(m³) 1.6-2.2 1.1-1.35 0.1-0.33
Ground pressure(kPa) 68 45 32
Travel speed(km/h) 3.25/5.43 3.0/5.1 2.5/5.0
Swing speed (rpm) 9.5 12.1 11
Gradeability 35° (70%)
Engine Model Cummins 6CTAA8.3-C (Euro II) Cummins 6BTAA5.9-C (Euro II) Yanmar 4TNV98(Euro IIIA)
Rated power(Kw(hp)/rpm) 197(265)/1950 133(178)/2000 44(59.75)/2200
Displacement (L) 8.3 5.9 3.319
Fuel tank(L) 580 350 95
Hydraulic System Max.pressure of Implements(MPa) 34.3 34.3 24.5
Max. flow of system( L/min) 340×2 217×2 156.2
Hydraulic oil tank(L) 470 220 115
Working Device Boom length(mm) 6470 5700 3000
Arm length(mm) 2900 2900 1550
Bucket radius(mm) 1670 1500 937
Digging Force Max. arm digging force (SAE/ISO)(kN) 171/178 103/107 28/31
Max. bucket digging force (SAE/ISO)(kN) 180/211 128/147 40/45
