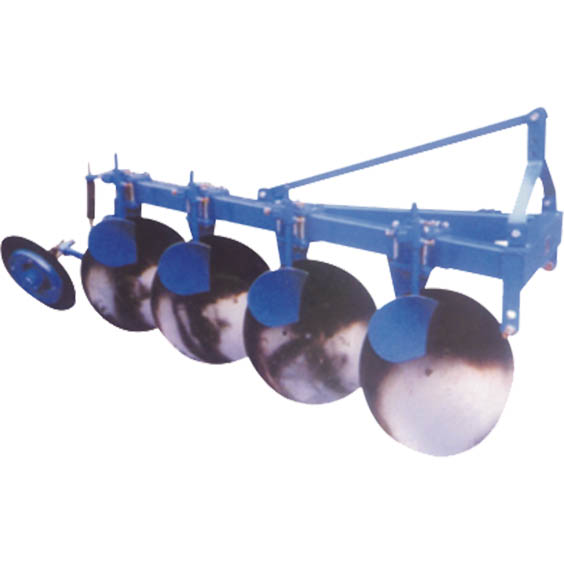

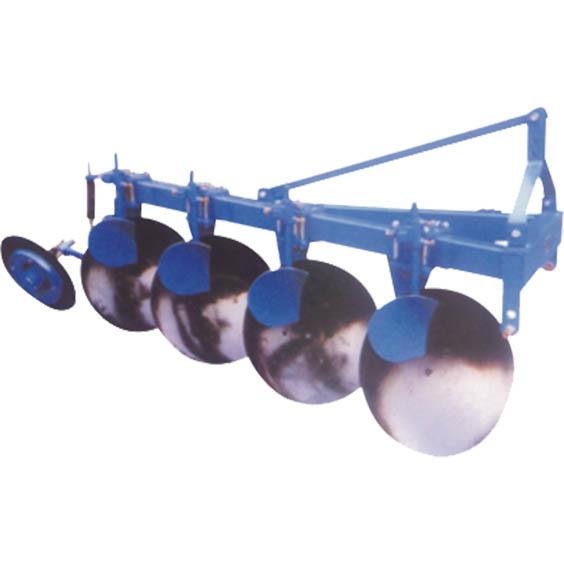

Disc Plough

The disc Plough is used for tillage on dry cultivated or fallow land, especially on high yield’s manure and virgin land. Good possibility and penetration, complete inversion and coverage. Small draft resistance. Easy operation and adjustment all these satisfy the agricultural requirements of fine cultivation.

Product-Features

Brief Introduction of Disc Plough

The disc Plough is used for tillage on dry cultivated or fallow land, especially on high yield’s manure and virgin land. Good possibility and penetration, complete inversion and coverage. Small draft resistance. Easy operation and adjustment all these satisfy the agricultural requirements of fine cultivation.

The disc plough is mainly used to plough field, and has the advantages of good grass winding resistance, high work quality and efficiency.

Specification

Model unit 1LYQ-220 1LYQ-320 1LY-325 1LY-425
Working width m 0.4 0.6 0.75 1.0
Working depth mm 200 200 250 250
Disc diameter mm 510 510 660 660
No. Of discs pccs 2 3 3 4
Overall weight kg 200 250 405 510
Matched power hp 18-25 25-40 50-80 90-110
