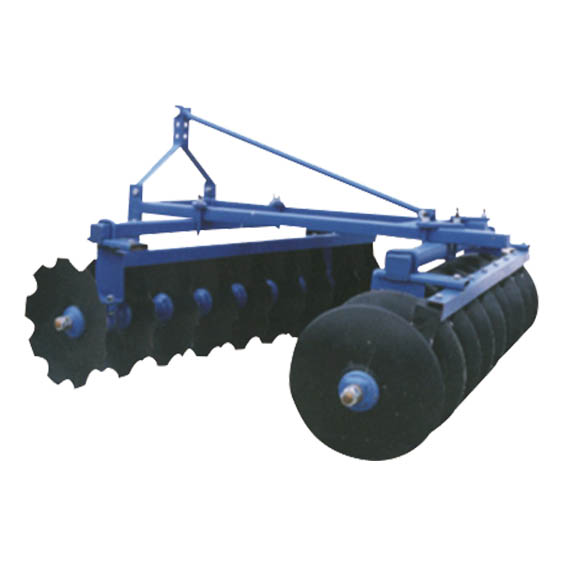

The 1BQX series disc harrow is mainly suitable for breaking up the clods of farmland, preparing soil before planting , loosing soil, mixing soil and fertilizer and chopping stubbles . This series of light-duty harrow is mainly suitable for crushing the clods after tillage, leveling the field before seeding, loosening the soil, mixing the soil and fertilizer, and cleaning the stubbles in light soil. It has features on reasonable construction, firmness to stand, long-lasting operation, easily handling and maintenance, strong ability to crush clod, and smooth field after tillage, etc.1BJ series of wing-folded hydraulic offset medium harrow is suitable for crushing the heavy clay soil after tillage .This machine has features on wide range of working, narrow transportation, wing-folding easily, compact construction, high productivity, convenient operation and maintenance etc.
| Model | unit | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | |
| Working width | m | 1.1 | 1.3 | 1.5 | 1.7 | 2.0 | 2.2 | 2.4 | |
| Working depth | mm | 80-120 | 140 | ||||||
| Disc diameter | mm | 460 | 560 | ||||||
| No. Of discs | pcs | 12 | 14 | 16 | 18 | 18 | 20 | 22 | |
| Overall weight | kg | 230 | 250 | 273 | 297 | 493 | 530 | 670 | |
| Matched power | hp | 12-20 | 15-25 | 25-35 | 30-35 | 50 | 55-65 | 65-75 | |
