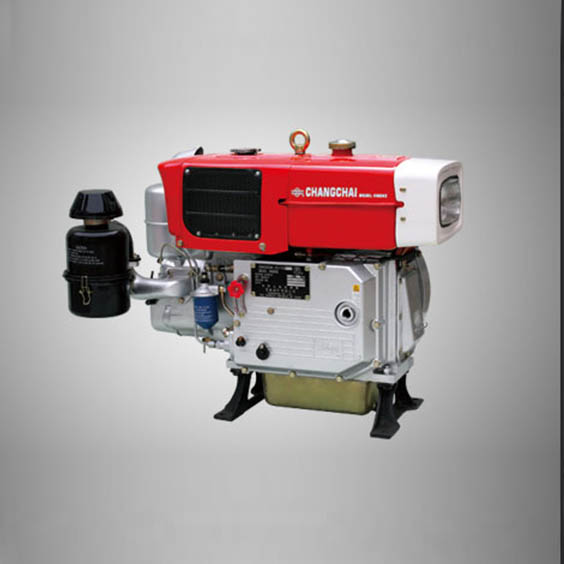

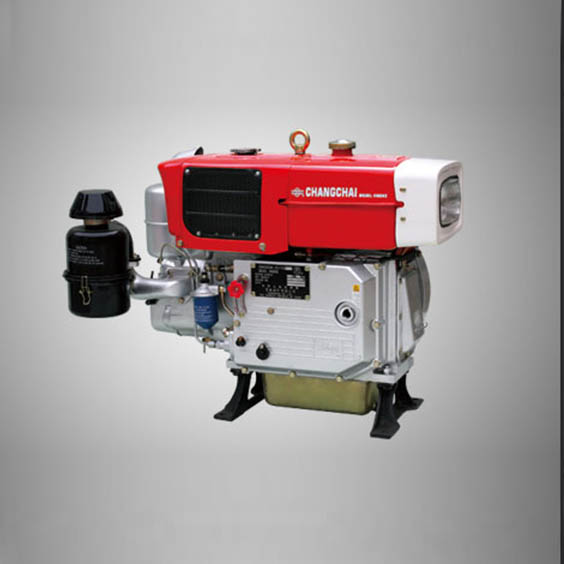

Diesel Engine

Diesel engine is widely used in small agricultural machinery. Such as tilling machine, drainage and irrigation machinery, generator set, mini lorry, mini walking tractors and other machinery.

Product-Features

Diesel engine is widely used in small agricultural machinery such as tilling machine, drainage and irrigation machinery, generator set, mini lorry, mini walking tractors and other machinery.

Specification

Model S195 ZS195 ZS1100 ZS1110 ZS1115 L32 R175B EH36
Engine type Single cylinder, horizontal, evaporative, water-cooling, four-stroke
Combustion chamber Swirl  Direct injection  Direct injection  Direct injection  Swirl  Direct injection
 Bore  (mm) 95 110 110 115 130 75 135
 Rated power/ rotational speed (kW/r/min) 10.6/2200 12.1/2200 14.7/2200 16.2/2200 23.0/2200 4.85/2600 25/2200
Calibrating  fuel consumption (g/kw.h) ≤258.4 ≤244.8 ≤246.2 ≤244.8 ≤244.8 ≤280.2 ≤240
Net weight (Kg) 145 155 180 185 212 60 220
Dimension (mm) 814×480×618 821×410×671 858×450×699 916×475×709 589×342 ×463 916×475×709
