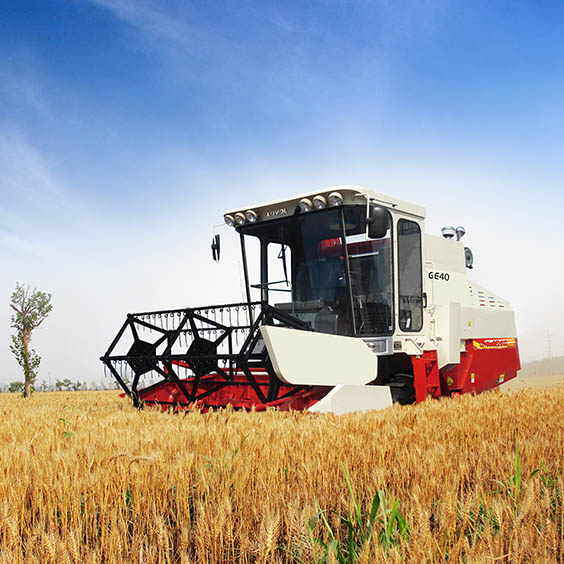

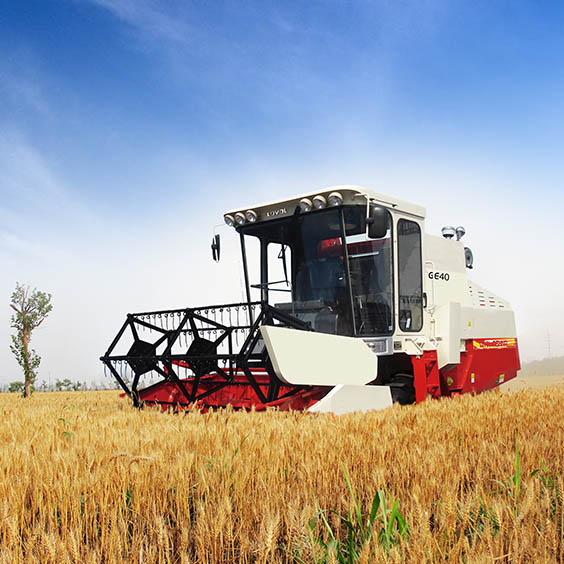

Combine Harvester

  • Combine Harvester for Rice and Wheat
  • New type patented re-sheller.
  • Independent suspension cab.
  • Water tank of motor adopts dust removing equipment with a flushing cover, which can realize auto-cleaning function.
  • Lengthened axle for a broad view of operation and easy maintenance.

Product-Features

1.New type patented re-sheller.
2.Independent suspension cab.
3. Water tank of motor adopts dust removing equipment with a flushing cover, which can realize auto-cleaning function.
4. Lengthened axle for a broad view of operation and easy maintenance.
5. Pre-reserved opening for double function machine, which is suitable for corn harvest after being replaced with corn accessories.
6. Choosable straw chopping machine to satisfy the requirement of straw recycling.

Specification

Engine power (ps) 90、100
Cutting width (mm) 2200、2360、2600
Feeding rate (kg/s) 2
Total loss rate (%) Wheat≤1.2 Rice≤3.0
Broken rate (%) Wheat≤1.0 Rice≤1.5
Impurity rate (%) Wheat≤2.0 Rice≤2.0
Threshing and cleaning structure type Slip Flow + Horizontal Spindle + Centrifugal Fan + Double Layers Vibrating Screener
Gravure plate adjustable structure Mechanical Controlled Adjustable Speed at Definite Ratios
Axis flow roller(outer diameter*length) φ550*1445
Grain tank capacity(m³) 1.8
Grain unloading type Mechanical Grain Discharging Hopper
Running speed range(Km/h) 1.8~20
Operation weight 4620~4680
Overall dimension (L*W*H) (mm) 6700*2700*3280 (Assembled with 2.36m shear platform)

Optional

1. Assembled Twizy motor with four cylinders or Yuchai motor with four cylinders.
2. Choosable straw chopping machine.
3. Choosable adjustable back axle or adjustable back axle + back brake.
4. Lengthened axle.

Model GE50 GE60 CM80
Engine power (ps) 90、100 121 129
Feeding rate (kg/s) 2 8 8
Cutting width (mm) 2200、2360、2600 2560/2750 2560/2750
Minimum Ground Clearance(mm) 300 280
Total loss rate (%) Wheat≤1.2 Rice≤3.0
Grain tank capacity(m³) 1.8 2.2 2.6
Threshing and cleaning structure type Slip Flow + Horizontal Spindle + Centrifugal Fan + Double Layers Vibrating Screener   Tangential flow + Horizontal spindle flow  Vertical spindle flow
Impurity rate (%) Wheat≤2.0 Rice≤2.0
Cleaning type Air-and-screen Air-and-screen
Gravure plate adjustable structure Mechanical Controlled Adjustable Speed at Definite Ratios
Operation weight 4620~4680 5400-5990 6880(Cutter removed)
Axis flow roller(outer diameter*length) φ550*1445
 Overall dimension(LⅹWⅹH,mm) 6800×2960/3080×3440 7000ⅹ2980ⅹ3470
Broken rate (%) Wheat≤1.0 Rice≤1.5
Productivity(hm²/h) 0.6-1.2 0.6-1.3
Driving wheel tread(mm) 1835 1900
Grain unloading type Mechanical Grain Discharging Hopper
Running speed range(Km/h) 1.8~20
Maximum  walking velocity(km/h) 20 27 26
Overall dimension (L*W*H) (mm) 6700*2700*3280 (Assembled with 2.36m shear platform)

Optional

1. Assembled Twizy motor with four cylinders or Yuchai motor with four cylinders.
2. Choosable straw chopping machine.
3. Choosable adjustable back axle or adjustable back axle + back brake.
4. Lengthened axle.
