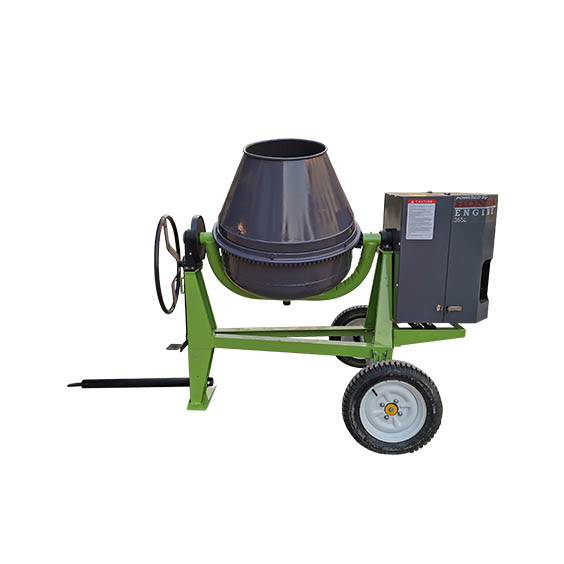

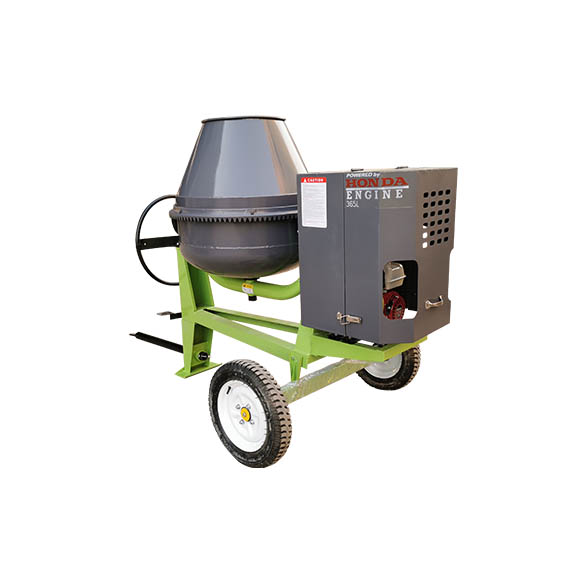

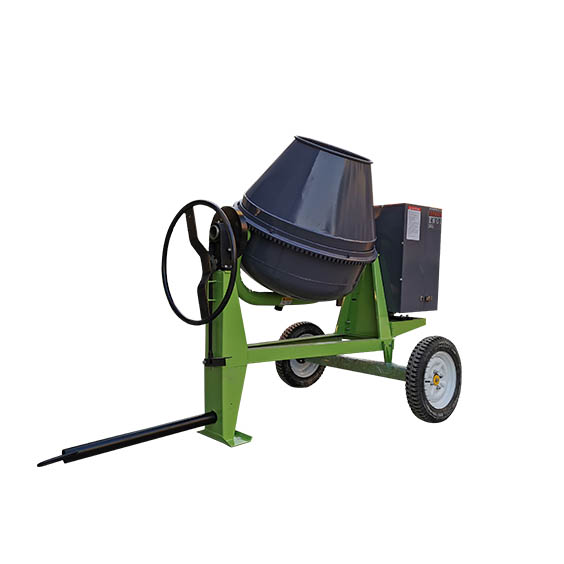

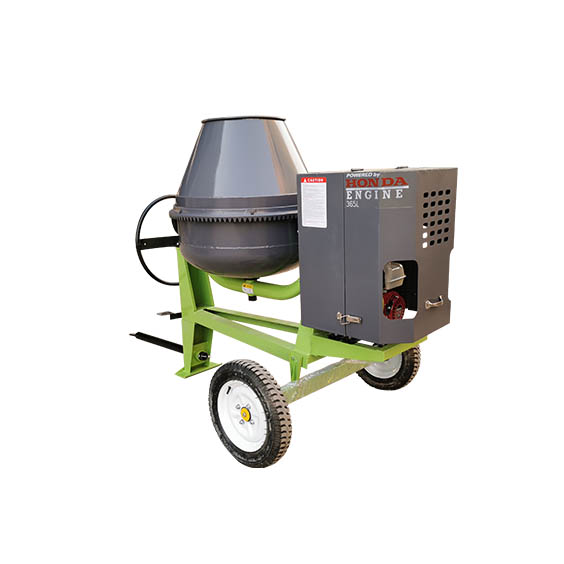

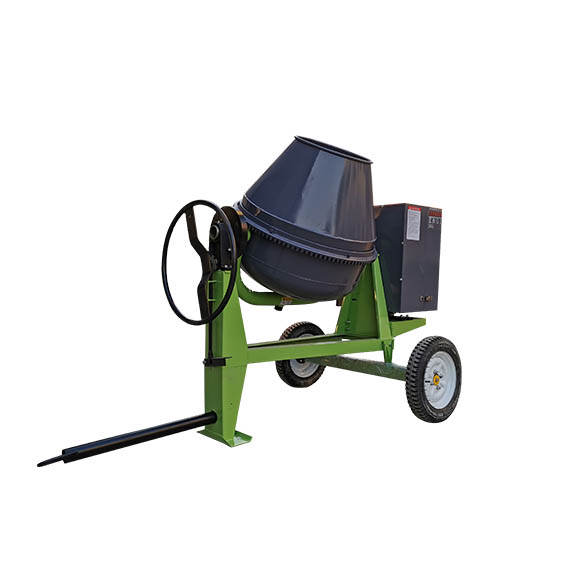

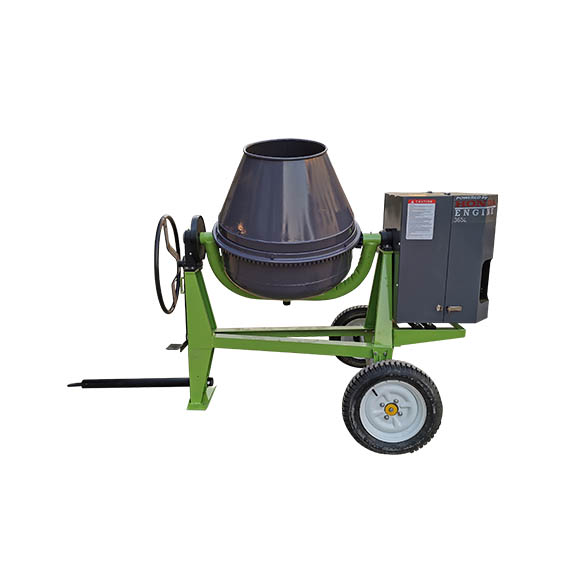

CM Concrete Mixer

CM Concrete Mixer is a device that homogeneously combines cement, sand, gravel, and water to form concrete.

CM Concrete Mixer is suitable in engineering of buildings, roads, hydropower, bridges and so on in many construction sites, especially in that of urban areas.

Product-Features

A concrete mixer is a device that homogeneously combines cement, sand, gravel, and water to form concrete. It is suitable in engineering of buildings, roads, hydropower, bridges and so on in many construction sites, especially in that of urban areas.

Specification

                         Main Technical Parameter
Model CM350-2A
Drum Capacity 350 L
Mixing Capacity 280 L
Productivity 4~5m3/h
Bags of Cement per Batch 1 Bag Cement
Drum Rotation Speed 25~30 rpm
Drum Thickness (Up/ Bottom) 3 mm/4 mm
Mixing Drum Size Φ800×900 mm
Engine Power 4 KW (5.5 HP)
Engine Model 178 FS
Engine Type Single-cylinder, Air-cooled Diesel Engine
Tyre Size and Number 2×(4.00-12)
Total Weight 290 kg
Packing Size (L×W×H ) 1860×860×1100 mm
