Bulldozer

The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.

The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.

Product-Features

1.The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.

2.The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.

3.The semi-rigid suspension traveling system increases the ground area of tracks and improves the traction force of vehicle.

4.The ergonomically designed driver seat and armrests can be adjusted easily in vertical and longitudinal directions. The gearshift, steering, and accelerator controls are arranged on the left side with the adoption of flexible shaft structure. The working device controls are arranged on the right side with adoption of servo control system to achieve lighter and more flexible operations and relieve the operating fatigue.

Specification

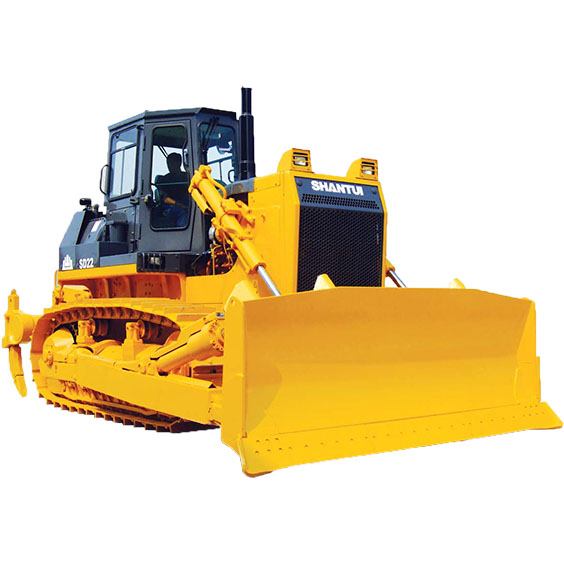

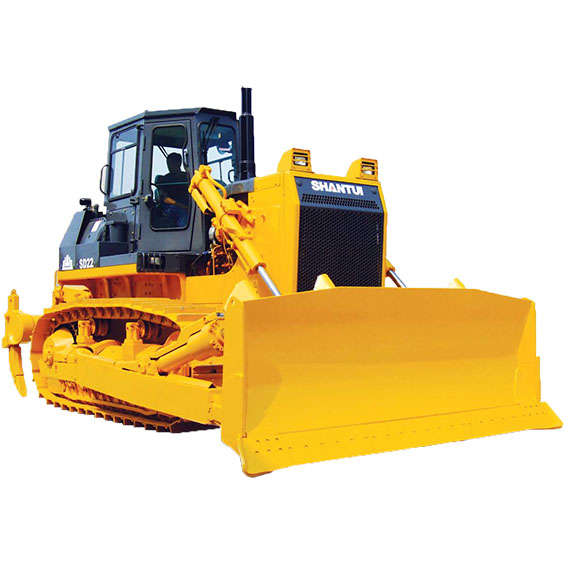

Model SD22
 ENGINE
Model & type Cummins NT855-C280S10; In-line, water cooled 4-cycle, overhead valve direct injection, turbocharged diesel
Horsepower Gross power: 175/235/1800 kW/HP/rpm                        Net power: 162/220/1800 kW/HP/rpm
Number of cylinders 6—139.7 x 152.4 mm (bore x stroke)
Min. fuel consumption 205 g/kW·h
POWER TRANSMISSION SYSTEM
Transmission Planetary gear, multi-disc clutch, power shift, forced lubrication
Main drive Spiral bevel gear, splash lubrication, single-stage speed reduction
Steering clutch Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control
Steering brake Wet, floating band, foot brake with hydraulic booster
Final drive 2-stage speed reduction of spur gear, splash lubrication
 SPEED
Gear 1st 2nd 3rd
Forward 0~3.6 km/h 0~6.5 km/h 0~11.2 km/h
Reverse 0~4.3 km/h 0~7.7 km/h 0~13.2 km/h

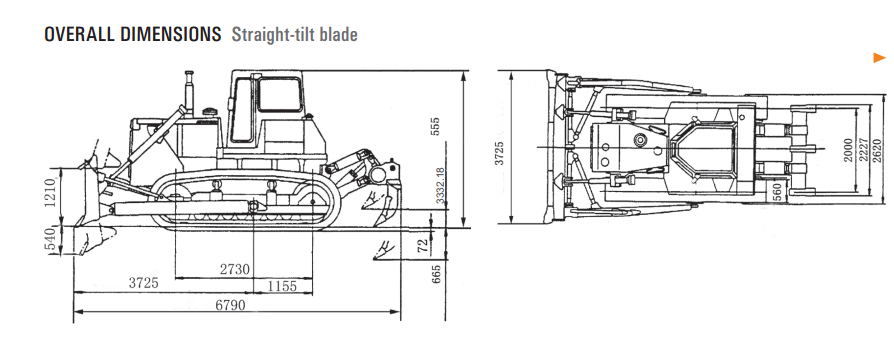

Blade type Straight-tilt Angle U-blade Semi-U-blade
Dozing capacity 6.4 m3 4.7 m3 7.5 m3 7.0 m3
Efficiency (Theoretical value 40 m) 330 m3/h 245 m3/h 391 m3/h 365 m3/h
Blade width 3725 mm 4365 mm 3800 mm 3725 mm
Blade height 1315 mm 1055 mm 1343 mm 1374 mm
Maximum drop below ground 540 mm 535 mm 540 mm 540 mm
Lifting height of blade 1210 mm 1290 mm 1210 mm 1210 mm
Weight of blade 2830 kg 3254 kg 3419 kg 3419 kg
