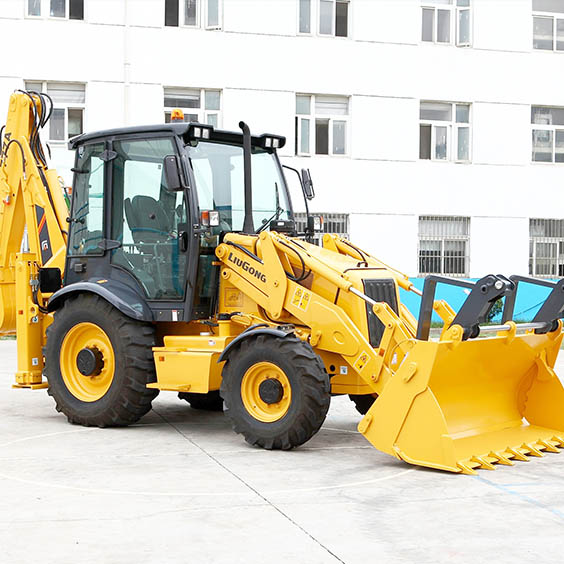

Backhoe Loader

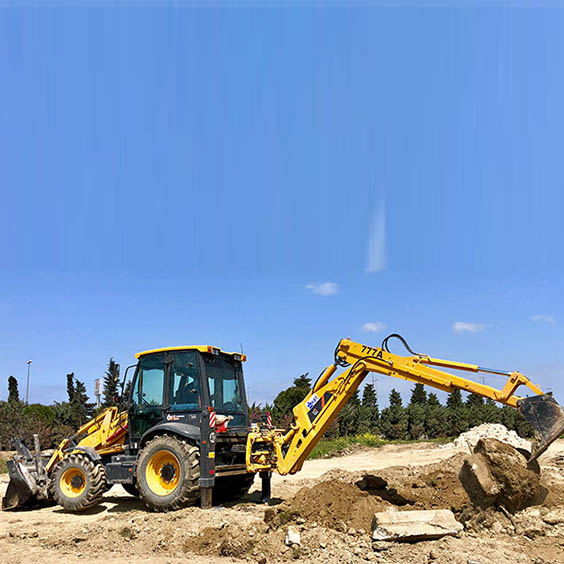

Backhoe Loader provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to General Construction, Demolitions and Excavations, Landscaping, Breaking Asphalt and Paving. Backhoes deliver the power and precise handling you need when operating in areas where using larger equipment is not practical.

  • Engine：Weichai WP4G95E21
  • Gross Power：70 kW (95 hp) @ 2,200 rpm
  • Net Power：68 kW (92.5 hp) @ 2,200 rpm
  • Maximum Speed：36 km/h
  • Standard Loader Bucket Capacity Standard： 1 m3
  • Backhoe Bucket Capacity： 0.20 m³
  • Operating Weight：8400 kg



Get a Quote Send E-mail

Products

Product-Features

Backhoe Loader

Backhoe Loader

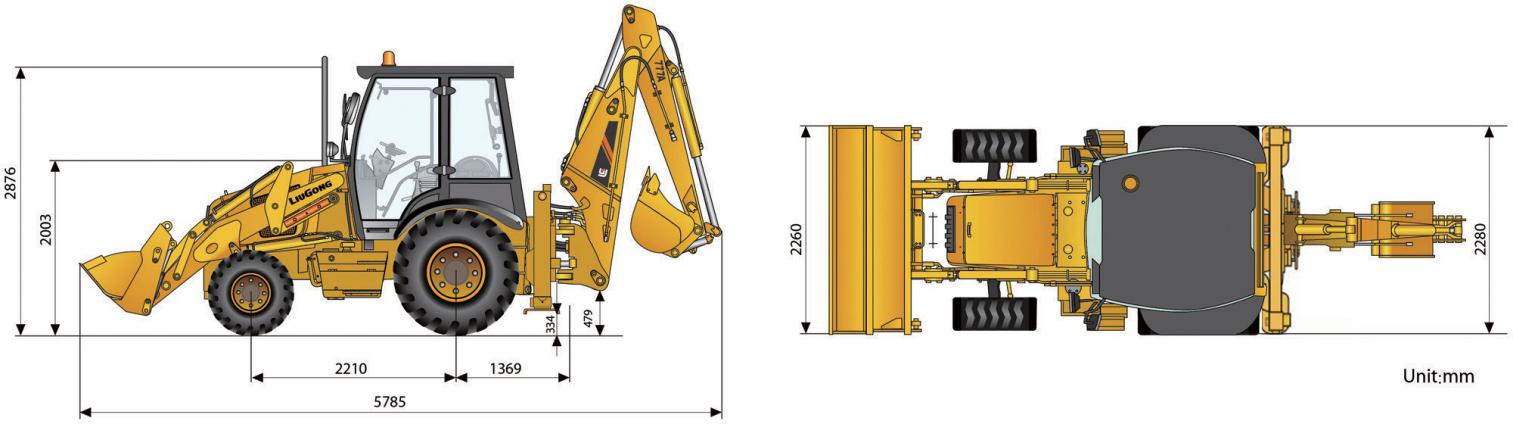

Specification

ENGINE
Emission Regulation Tier 2 / Stage II
Make Weichai
Model WP4G95E221
Gross Power 70 kW (95 hp) @ 2,200 rpm
Net Power 68 kW (92.5 hp) @ 2,200 rpm
Peak Torque 383 N • m @ 1,500 rpm
Displacement 4.5 L
ENGINE
Emission Regulation Tier 2 / Stage II
Make Weichai
Model WP4G95E221
Gross Power 70 kW (95 hp) @ 2,200 rpm
Net Power 68 kW (92.5 hp) @ 2,200 rpm
Peak Torque 383 N • m @ 1,500 rpm
Displacement 4.5 L
ELECTRICAL SYSTEM
System Voltage 12 V
Battery Rating 95 amp – hr
DRIVE TRAIN
Number of Drive Wheels 2 wd / 4 wd
1st Maximum Speed, fwd/rev 5.9 km/h
2nd Maximum Speed, fwd/rev 10.7 km/h
3rd Maximum Speed, fwd/rev 20.5 km/h
4th Maximum Speed, fwd/rev 36 km/h
Turning Radius Outside of Front Tire 4,225 mm
Turning Radius Outside of Bucket 5,554 mm
BACKHOE PERFORMANCE
Standard Bucket Type (referenced) general bucket

0.20 m3
Standard Bucket Heaped Capacity ISO (referenced) 0.20 m3
Standard Bucket Width (referenced) 762 mm
Maximum Dig Depth 4,440 mm
Reach From Swing Pivot at Ground 5,433mm
Turning Angle of Bucket 182°
Bucket Digging Force 58.2 kN
Dipper Digging Force, standard stick 37.5 kN
Loading Height 3,680 mm
Loading Reach from Swing Pivot 3,007 mm
BRAKES
Service Brake Type wet disc
Service Brake Actuation Hydraulic service
TIRES
Front Tire Size 14 – 17.5NHS – 14RPTLL – 2B
Rear Tire Size 19.5 L – 24 14PR TL R – 4
SERVICE CAPACITIES
Fuel Tank 130 L
Engine Oil 13 L
Cooling System 15 L
Hydraulic Reservoir 130 L
Hydraulic System Total 170 L
Transmission and Torque Converter 16 L
Axle, front 6.9 L
Axle, rear 17.5 L
HYDRAULIC SYSTEM
Circuit Type open
Total Flow 143 L/min
Main Relief Pressure 24 MPa
Pump Type tandem gear pump
Steering Type priority valve
