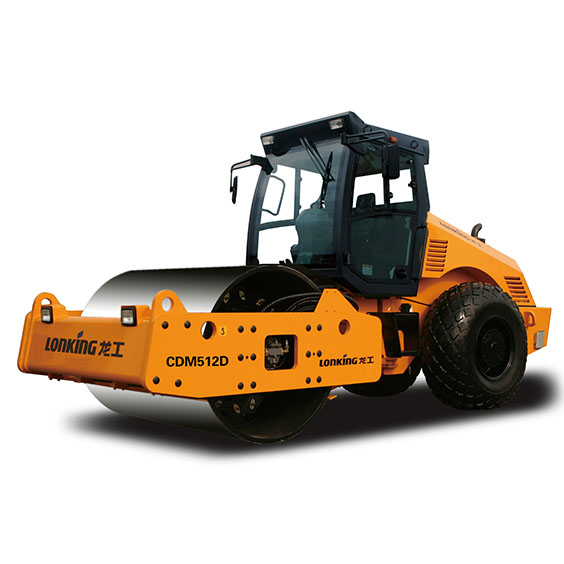

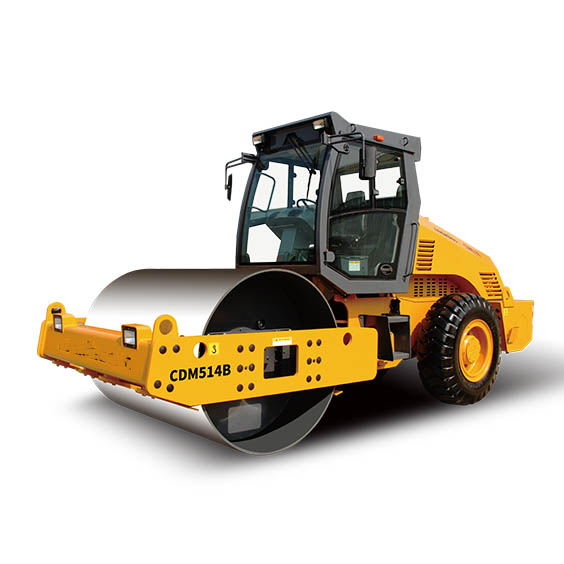

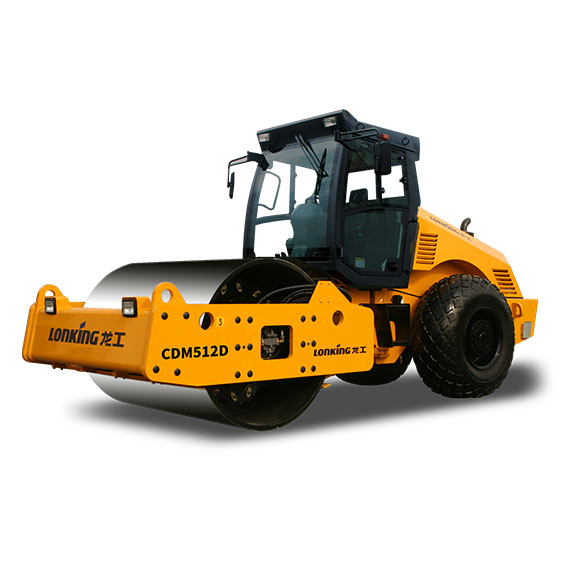

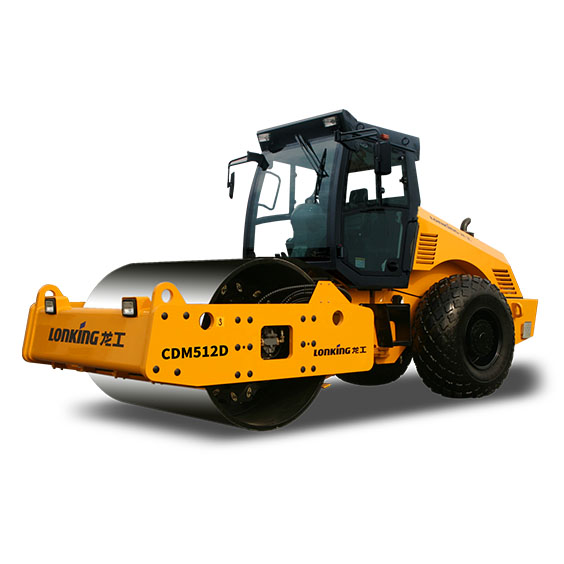

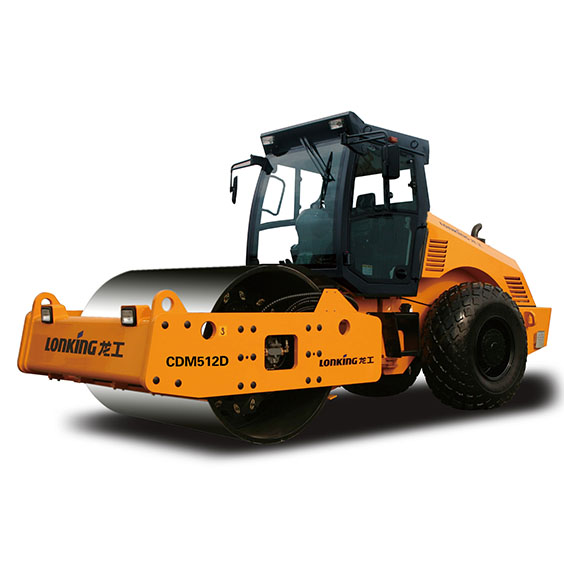

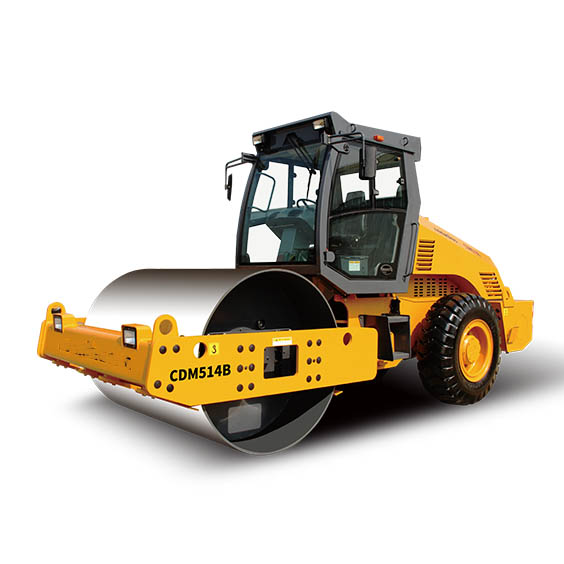

CDM series Road Roller

  • Proven Reliability
  • Outstanding After-sales service
  • Easy maintenance
  • Chinese road roller, Chinese single drum roller, Chinese vibratory roller
  • Powerful  engine
  • Reliable hydraulic vibration system
  • Excellent ergonomics design

Product-Features

1.Proven Reliability

2.Outstanding After-sales service

3.Easy maintenance

4.Chinese road roller, Chinese single drum roller, Chinese vibratory roller

5.Powerful  engine

6.Reliable hydraulic vibration system

7.Excellent ergonomics design

Specification

Model CDM514B CDM512D
Operating Weight (kg) 14000 12000
Length*Width*Height (mm) 5975*2280*3278 5978*2280*3220
Static Linear Load (N/cm) 330 303
Vibration Frequency (Hz) 28 30/36
Nominal Amplitude (mm) 1.8/0.9 1.8/0.9
Centrifugal Force (kN) 290/160 270/180
Engine Weichai DF Cummins
Rated Power (kW/ rpm) 92/2000 112/2200
Diameter of Drum(mm) 1520 1532
Rated Power



92kw/2000 rpm 112kw/2200 rpm
Static Linear Pressure



303N/cm 303N/cm
Drum/tire Load



7000/7000kg 6500/5500kg
