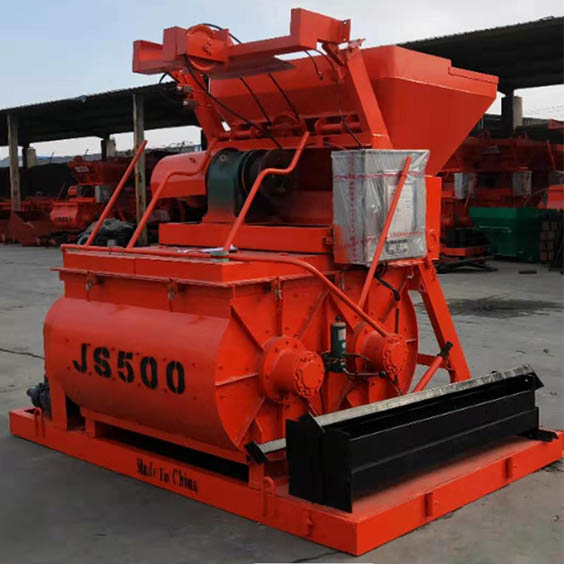

JS Concrete Mixer

JS Concrete Mixer is twin shaft horizontal forced type mixer. It can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar.

JS Concrete Mixer is a high-efficiency machine with wide application. It has dual superiorities of working solely or forming simple concrete mixing plant with PLD series batching machine, and can also mixer for HZS35 concrete batching plant.



JS Concrete Mixer has these following characteristics: reasonable structure,  superior quality, short mixing time, low energy consumption and little noise etc.

JS Concrete Mixer have unloading form of a high degree of 1.5 m, 2.0m, 2.7 m, 3.8 m with the users concrete means of transport, such as :dump motor vehicles, dump car, concrete mixer truck, etc. The customers can make a unloading degree by their own requirements.

JS Concrete Mixer has a dual advantages for a stand-alone work independently and composing of simple concrete mixing plant which would be with PLD series batching machine. Besides, it can provide main mixing machine for concrete batching plant.

JS Concrete Mixer can be used in all types of large, medium, highways, bridges, water conservancy, port and other industrial and civil engineering, well, it can mix dry concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete and all kinds of mortar. All in all, this kind of machine belongs to a high-efficiency model and be used widely.


Model JS350 JS500 JS750
 Discharging capacity (L) 350 500 750
Charging capacity (L) 560 800 1200
Productivity (m3/h) 17.5-21 25-30 ≥37.5
Max-diameter of aggregate(pebble/gravel) 80/60 80/60 60/40
 Mixing motor Y160L-4-15 Y180M-4-18.5 Y200L-4 (B3)-30
 Winch motor YEZ112M-4-B/4kw YEZ132S-4-B/5.5kw YEZ41-4/7.5kw
 Water pump motor 50DWB20-8A/0.75kw 50DWB20-8A/0.75kw 65DWB35-5/1.1kw
Dimension (mm) 4460×2850×5220 4460×3050×5220 4950×3636×6530
Weight(kg) 3650 4200 5500
